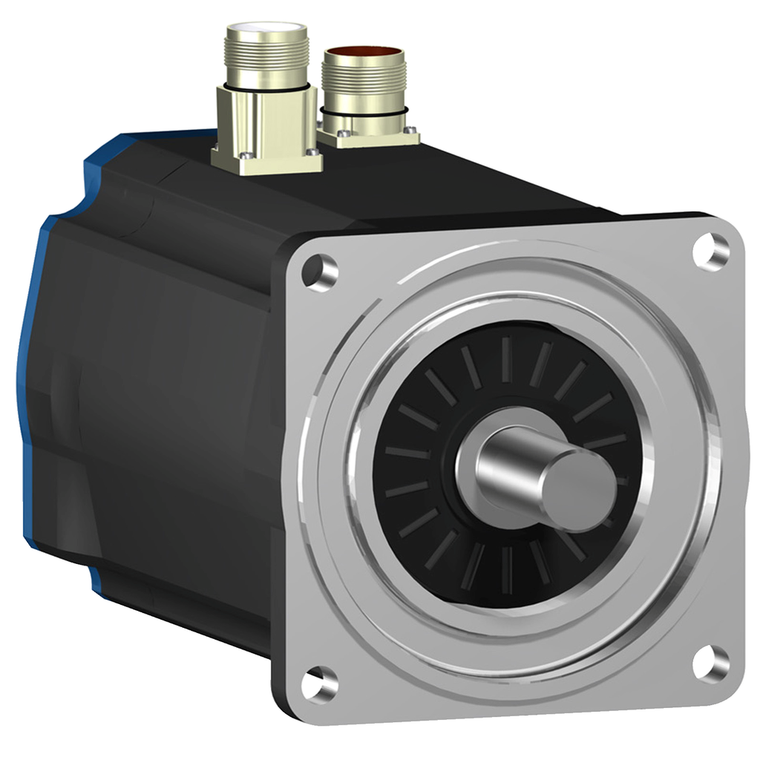

Schneider Electric BSH1002P01A1A Bsh Motor Iec 100Mm 5,5 Nm Wo Key Ip40 S

SKU:

BSH1002P01A1A

UPC:

3389118139114

MPN:

Condition:

New

Maximum Mechanical Speed:

6000 rpm

Circularity Profile:

N/A

Length:

204.5 mm

Rotor Inertia:

2.31 kg.cm²

Speed Feedback Resolution:

131072 points/turn

Continuous Stall Current:

4.8 A

Shaft Length:

40 mm

Motor Flange Size:

100 mm

Mounting Holes Diameter:

9 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft End:

untapped

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Maximum Radial Force Fr:

620 N 4000 rpm || 690 N 3000 rpm || 790 N 2000 rpm || 990 N 1000 rpm

Mounting Support:

international standard flange

Holding Brake:

without

Ip Degree Of Protection:

IP50 standard

[Us] Rated Supply Voltage:

480 V

Back Emf Constant:

77 V/krpm 120 °C

Nominal Torque:

4.5 N.m LXM15LD21M3, 230 V, single phase || 4 N.m LXM15LD17N4, 400 V, three phase || 4.4 N.m LXM05AD22N4, 380...480 V, three phase || 4.4 N.m LXM05BD22N4, 380...480 V, three phase || 4.4 N.m LXM05CD22N4, 380...480 V, three phase || 4.96 N.m LXM05AD17

Number Of Motor Poles:

8

Maximum Current Irms:

17.1 A LXM15LD13M3 || 17.1 A LXM05BD22N4 || 17.1 A LXM05CD28M2 || 17.1 A LXM05CD17M3X || 17.1 A LXM05CD22N4 || 17.1 A LXM32.D18N4 || 17.1 A LXM15LD21M3 || 17.1 A LXM15LD10N4 || 17.1 A LXM15LD17N4 || 17.1 A LXM05AD28M2 || 17.1 A LXM05AD17M3X || 17.1 A

Stator Electrical Time Constant:

5.29 ms 20 °C

Type Of Cooling:

natural convection

Maximum Axial Force Fa:

0.2 x Fr

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Connection:

straight connectors

Device Short Name:

BSH

Second Shaft:

without second shaft end

Number Of Mounting Holes:

4

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Phase:

three phase

Number Of Motor Stacks:

2

Environmental Disclosure:

ENVPEP111049EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Centring Collar Diameter:

95 mm

Range Compatibility:

Lexium 32 || Lexium 05 || Lexium 15

Feedback Type:

single turn SinCos Hiperface

Torque Constant:

1.21 N.m/A 120 °C

Stator Resistance:

2.4 Ohm 20 °C

Net Weight:

5.9 kg

Circle Diameter Of The Mounting Holes:

115 mm

Product Or Component Type:

servo motor

Continuous Stall Torque:

4.5 N.m LXM15LD21M3, 230 V, single phase || 5.5 N.m LXM05AD22N4, 380...480 V, three phase || 5.5 N.m LXM05AD28M2, 200...240 V, single phase || 5.5 N.m LXM05BD17M3X, 200...240 V, three phase || 5.5 N.m LXM05BD22N4, 380...480 V, three phase || 5.5 N.m

Peak Stall Torque:

9.39 N.m LXM15LD21M3, 230 V, single phase || 13.92 N.m LXM05AD22N4, 380...480 V, three phase || 16 N.m LXM05AD28M2, 200...240 V, single phase || 11.23 N.m LXM05BD17M3X, 200...240 V, three phase || 13.92 N.m LXM05BD22N4, 380...480 V, three phase || 16

Continuous Power:

2.51 W

Nominal Speed:

3000 rpm LXM05AD22N4, 380...480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase || 1500 rpm LXM05AD28M2, 200...240 V, single phase || 1500 rpm LXM05BD28M2, 200...240 V, single phase || 1500 rpm LXM05CD28M2, 200...240 V, single phase ||

Nominal Output Power:

950 W LXM15LD21M3, 230 V, single phase || 1700 W LXM15LD17N4, 400 V, three phase || 1950 W LXM15LD17N4, 480 V, three phase || 2150 W LXM15LD10N4, 480 V, three phase || 780 W LXM05AD17M3X, 200...240 V, three phase || 780 W LXM05BD17M3X, 200...240 V, t

China Rohs Regulation:

X

Shaft Diameter:

19 mm

Stator Inductance:

12.7 mH 20 °C

Maximum Permanent Current:

17.1 A

Warranty:

18 months

Product Compatibility:

LXM05AD28M2 200...240 V single phase || LXM15LD10N4 230 V three phase || LXM15LD10N4 480 V three phase || LXM15LD21M3 230 V three phase || LXM05AD22N4 380...480 V three phase || LXM05BD22N4 380...480 V three phase || LXM05CD22N4 380...480 V three pha

Switching Frequency:

8 kHz

Centring Collar Depth:

3.5 mm

Datasheet:

View
