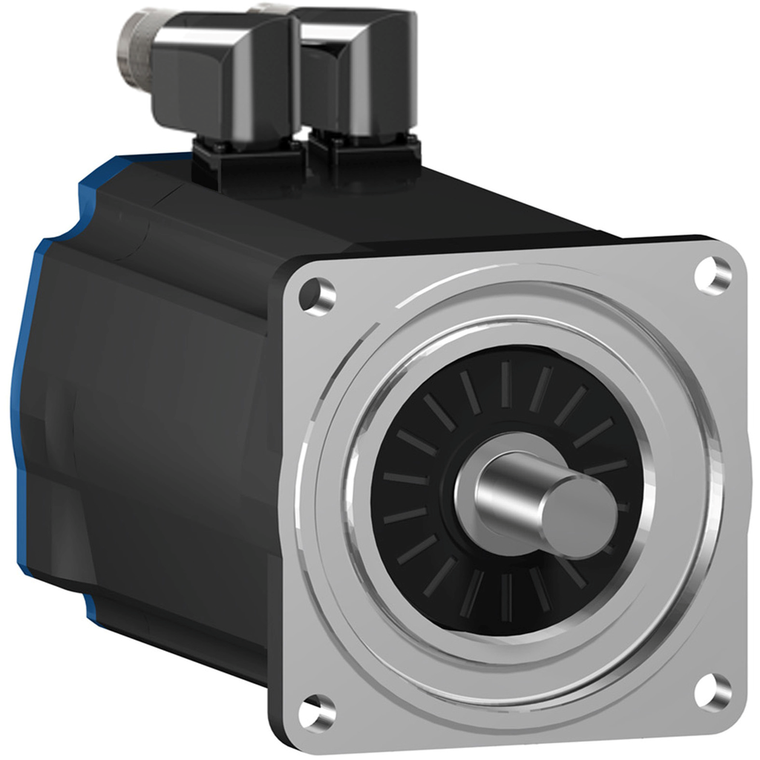

Schneider Electric BSH1002T31A2A Bsh Motor Iec 100Mm 5,5 Nm With Key Ip65

Schneider Electric BSH1002T31A2A Bsh Motor Iec 100Mm 5,5 Nm With Key Ip65

Schneider Electric
SKU:
BSH1002T31A2A
|
UPC:
3389118139596
$3,796.63
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
AC servo motor BSH, Lexium 05, 5.5N.m, 4000rpm, keyed shaft, without brake, IP65
Additional Information
Range Compatibility:
Lexium 15 || Lexium 32 || Lexium 05
Speed Feedback Resolution:
131072 points/turn
Nominal Output Power:
1500 W LXM32.D30M2 10 A, 230 V, single phase || 1400 W LXM05AD42M3X, 200...240 V, three phase || 1400 W LXM05BD42M3X, 200...240 V, three phase || 1400 W LXM05CD42M3X, 200...240 V, three phase || 1700 W LXM15LD28M3, 230 V, three phase
Mercury Free:
Yes
Maximum Permanent Current:
35.4 A
Feedback Type:
single turn SinCos Hiperface
Environmental Disclosure:
ENVPEP111049EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Key Width:
30 mm
Continuous Power:
2.51 W
Continuous Stall Torque:
5.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 5.5 N.m LXM15LD28M3, 230 V, three phase || 5.5 N.m LXM05AD42M3X, 200...240 V, three phase || 5.5 N.m LXM05BD42M3X, 200...240 V, three phase || 5.5 N.m LXM05CD42M3X, 200...240 V, three phase
Motor Flange Size:
100 mm
Warranty:
18 months
Shaft End:
keyed
Number Of Motor Poles:
8
Maximum Current Irms:
31.2 A LXM15LD28M3 || 35.4 A LXM05AD42M3X || 35.4 A LXM05BD42M3X || 35.4 A LXM05CD42M3X || 30 A LXM32.D30M2
Torque Constant:
0.59 N.m/A 120 °C
Mounting Holes Diameter:
9 mm
Maximum Axial Force Fa:
0.2 x Fr
Circle Diameter Of The Mounting Holes:
115 mm
Continuous Stall Current:
9.9 A
Shaft Length:
40 mm
Maximum Radial Force Fr:
620 N 4000 rpm || 690 N 3000 rpm || 790 N 2000 rpm || 990 N 1000 rpm
China Rohs Regulation:
X
Second Shaft:
without second shaft end
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
servo motor
Back Emf Constant:
37 V/krpm 120 °C
Rotor Inertia:
2.31 kg.cm²
Stator Resistance:
0.56 Ohm 20 °C
Circularity Profile:
N/A
Nominal Torque:
3.7 N.m LXM32.D30M2 10 A, 230 V, single phase || 4 N.m LXM15LD28M3, 230 V, three phase || 4.4 N.m LXM05AD42M3X, 200...240 V, three phase || 4.4 N.m LXM05BD42M3X, 200...240 V, three phase || 4.4 N.m LXM05CD42M3X, 200...240 V, three phase
Product Compatibility:
LXM32.D30M2 230 V single phase || LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase
Type Of Cooling:
natural convection
Electrical Connection:
rotatable right-angled connectors
Device Short Name:
BSH
Holding Brake:
without
Phase:
three phase
Shaft Diameter:
19 mm
Length:
204.5 mm
Centring Collar Depth:
3.5 mm
Rohs Exemption Information:
Yes
[Us] Rated Supply Voltage:
480 V
Maximum Mechanical Speed:
6000 rpm
Mounting Support:
international standard flange
Sustainable Offer Status:
Green Premium product
Nominal Speed:
4000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase || 4000 rpm LXM15LD28M3, 230 V, three phase
Stator Electrical Time Constant:
5.36 ms 20 °C
Number Of Motor Stacks:
2
Net Weight:
5.9 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Pvc Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Mounting Holes:
4
Stator Inductance:
3 mH 20 °C
Peak Stall Torque:
16.4 N.m LXM32.D30M2 10 A, 230 V, single phase || 11.59 N.m LXM15LD28M3, 230 V, three phase || 16 N.m LXM05AD42M3X, 200...240 V, three phase || 16 N.m LXM05BD42M3X, 200...240 V, three phase || 16 N.m LXM05CD42M3X, 200...240 V, three phase
Centring Collar Diameter:
95 mm
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Switching Frequency:
8 kHz
Datasheet:
View
