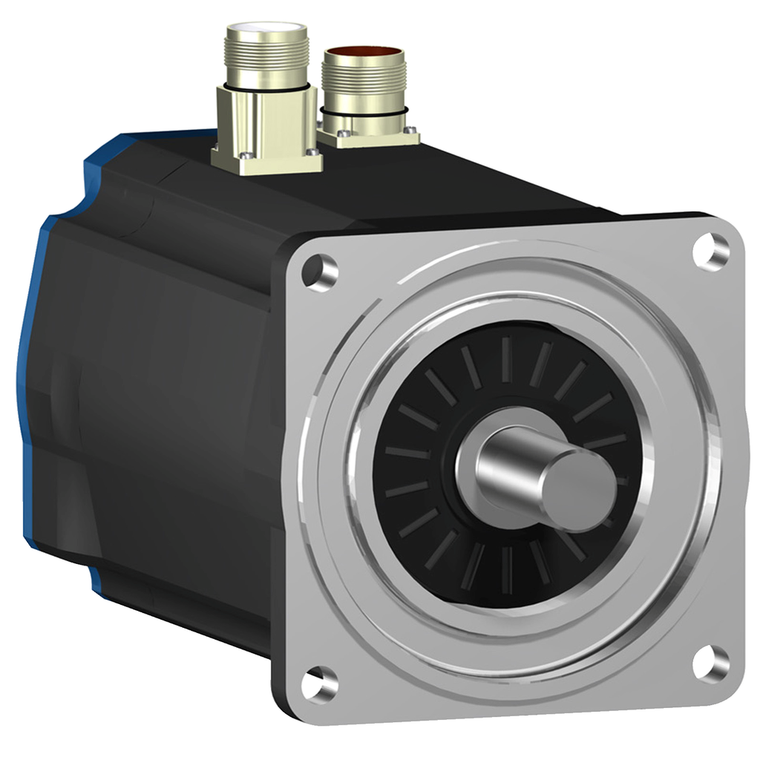

Schneider Electric BSH1003P01F1A Bsh Motor Iec 100Mm 7,8 Nm Wo Key Ip40 S
SKU:
BSH1003P01F1A
UPC:
3389118140073
MPN:
Condition:
New
Maximum Current Irms:
28.3 A LXM15LD21M3 || 28.3 A LXM05BD42M3X || 28.3 A LXM05BD34N4 || 28.3 A LXM05CD28M2 || 28.3 A LXM05CD42M3X || 28.3 A LXM05CD34N4 || 28.3 A LXM32.D30N4 || 28.3 A LXM15LD28M3 || 28.3 A LXM15LD17N4 || 28.3 A LXM15MD28N4 || 28.3 A LXM15MD40N4 || 28.3 A
Holding Brake:
with
Length:
271.5 mm
Shaft Length:
40 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Continuous Stall Torque:
8 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.7 N.m LXM15LD21M3, 230 V, three phase || 6.7 N.m LXM15LD17N4, 230 V, three phase || 6.7 N.m LXM15LD17N4, 400 V, three phase || 6.7 N.m LXM15LD17N4, 480 V, three phase || 7.8 N.m LXM15LD28M3, 230 V, thre
Motor Flange Size:
100 mm
Stator Inductance:
8.8 mH 20 °C
Mounting Holes Diameter:
9 mm
Phase:
three phase
Circle Diameter Of The Mounting Holes:
115 mm
Brake Pull-In Power:
18 W
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Switching Frequency:
8 kHz
Shaft End:
untapped
Mercury Free:
Yes
Feedback Type:
single turn SinCos Hiperface
Rotor Inertia:
3.838 kg.cm²
Shaft Diameter:
19 mm
Type Of Cooling:
natural convection
Nominal Speed:
3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 1500 rpm LXM05CD42M3X, 200...240 V, three phase || 2000 rpm LXM15LD28M3, 230 V, three phase || 2500 rpm LXM15LD17N4, 230 V, three phase || 2500 rpm LXM15LD21M3, 230 V, three phase || 3000 rpm LXM05AD34
Nominal Output Power:
2000 W LXM32.D30N4 10 A, 400 V, three phase || 1700 W LXM15LD17N4, 230 V, three phase || 1700 W LXM15LD21M3, 230 V, three phase || 1800 W LXM05AD34N4, 380...480 V, three phase || 1800 W LXM05BD34N4, 380...480 V, three phase || 1800 W LXM05CD34N4, 380
Number Of Motor Poles:
8
Product Or Component Type:
servo motor
Number Of Motor Stacks:
3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Connection:
straight connectors
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Second Shaft:
without second shaft end
Net Weight:
8 kg
Number Of Mounting Holes:
4
Environmental Disclosure:
ENVPEP111049EN
Centring Collar Diameter:
95 mm
Maximum Radial Force Fr:
1050 N 1000 rpm || 660 N 4000 rpm || 730 N 3000 rpm || 830 N 2000 rpm
Maximum Permanent Current:
28.3 A
Continuous Power:
3.14 W
Maximum Mechanical Speed:
6000 rpm
Continuous Stall Current:
6.6 A
Stator Electrical Time Constant:
6.15 ms 20 °C
Circularity Profile:
N/A
Ip Degree Of Protection:
IP50 standard
Holding Torque:
9 N.m holding brake
Warranty:
18 months
China Rohs Regulation:
X
Peak Stall Torque:
28.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 19.69 N.m LXM15LD28M3, 230 V, three phase || 19.69 N.m LXM15MD28N4, 400 V, three phase || 19.69 N.m LXM15MD28N4, 480 V, three phase || 23.17 N.m LXM15MD40N4, 400 V, three phase || 23.17 N.m LXM15MD40N4
Range Compatibility:
Lexium 05 || Lexium 32 || Lexium 15
Back Emf Constant:
77 V/krpm 120 °C
Device Short Name:
BSH
Product Compatibility:
LXM05AD28M2 200...240 V single phase || LXM15LD17N4 480 V three phase || LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three pha
Mounting Support:
international standard flange
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Centring Collar Depth:
3.5 mm
Maximum Axial Force Fa:
0.2 x Fr
Sustainable Offer Status:
Green Premium product
Nominal Torque:
6.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 5 N.m LXM15MD28N4, 400 V, three phase || 5 N.m LXM15MD40N4, 400 V, three phase || 5.7 N.m LXM05AD34N4, 380...480 V, three phase || 5.7 N.m LXM05BD34N4, 380...480 V, three phase || 5.7 N.m LXM05CD34N4, 3
