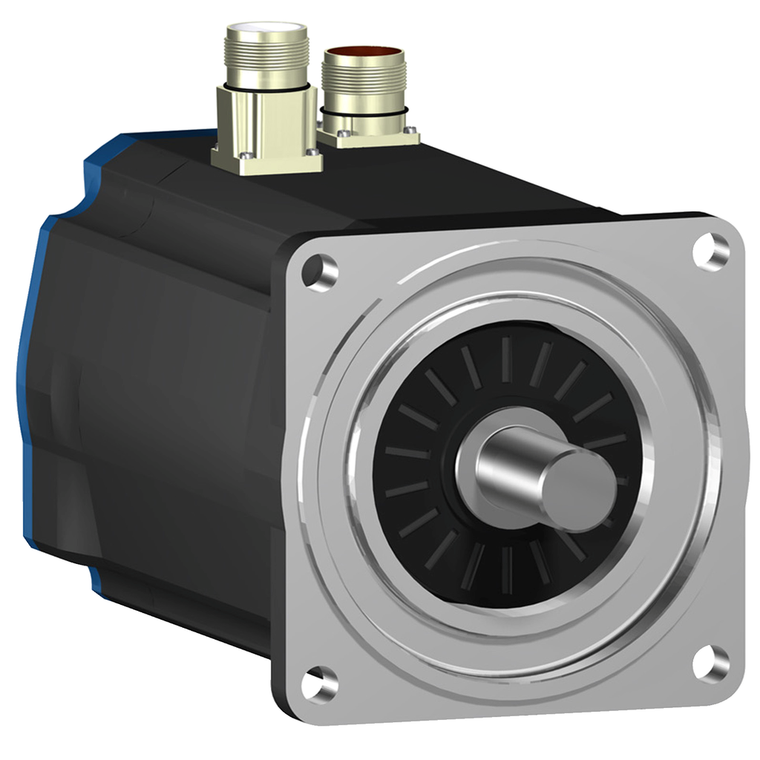

Schneider Electric BSH1003P31A1A Bsh Motor Iec 100Mm 7,8 Nm With Key Ip65

SKU:

BSH1003P31A1A

UPC:

3389118140196

MPN:

Condition:

New

Type Of Cooling:

natural convection

Motor Flange Size:

100 mm

Shaft End:

keyed

Back Emf Constant:

77 V/krpm 120 °C

Circle Diameter Of The Mounting Holes:

115 mm

Stator Resistance:

1.43 Ohm 20 °C

Environmental Disclosure:

ENVPEP111049EN

Key Width:

30 mm

Mercury Free:

Yes

Speed Feedback Resolution:

131072 points/turn

Device Short Name:

BSH

Maximum Axial Force Fa:

0.2 x Fr

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

480 V

Net Weight:

7.4 kg

Rotor Inertia:

3.22 kg.cm²

Mounting Support:

international standard flange

Circularity Profile:

N/A

Continuous Stall Current:

6.6 A

Switching Frequency:

8 kHz

Shaft Diameter:

19 mm

Centring Collar Diameter:

95 mm

Phase:

three phase

Continuous Power:

3.14 W

Number Of Motor Stacks:

3

Peak Stall Torque:

28.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 19.69 N.m LXM15LD28M3, 230 V, three phase || 19.69 N.m LXM15MD28N4, 400 V, three phase || 19.69 N.m LXM15MD28N4, 480 V, three phase || 23.17 N.m LXM15MD40N4, 400 V, three phase || 23.17 N.m LXM15MD40N4

Maximum Current Irms:

28.3 A LXM15LD21M3 || 28.3 A LXM05BD42M3X || 28.3 A LXM05BD34N4 || 28.3 A LXM05CD28M2 || 28.3 A LXM05CD42M3X || 28.3 A LXM05CD34N4 || 28.3 A LXM32.D30N4 || 28.3 A LXM15LD28M3 || 28.3 A LXM15LD17N4 || 28.3 A LXM15MD28N4 || 28.3 A LXM15MD40N4 || 28.3 A

Mounting Holes Diameter:

9 mm

Number Of Motor Poles:

8

Maximum Permanent Current:

28.3 A

Feedback Type:

single turn SinCos Hiperface

Maximum Radial Force Fr:

1050 N 1000 rpm || 660 N 4000 rpm || 730 N 3000 rpm || 830 N 2000 rpm

Second Shaft:

without second shaft end

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Product Compatibility:

LXM05AD28M2 200...240 V single phase || LXM15LD17N4 480 V three phase || LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three pha

Centring Collar Depth:

3.5 mm

Shaft Length:

40 mm

Nominal Output Power:

2000 W LXM32.D30N4 10 A, 400 V, three phase || 1700 W LXM15LD17N4, 230 V, three phase || 1700 W LXM15LD21M3, 230 V, three phase || 1800 W LXM05AD34N4, 380...480 V, three phase || 1800 W LXM05BD34N4, 380...480 V, three phase || 1800 W LXM05CD34N4, 380

Sustainable Offer Status:

Green Premium product

Electrical Connection:

straight connectors

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Compatibility:

Lexium 32 || Lexium 05 || Lexium 15

Product Or Component Type:

servo motor

Pvc Free:

Yes

Stator Inductance:

8.8 mH 20 °C

Maximum Mechanical Speed:

6000 rpm

Number Of Mounting Holes:

4

China Rohs Regulation:

X

Length:

240.5 mm

Warranty:

18 months

Nominal Torque:

6.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 5 N.m LXM15MD28N4, 400 V, three phase || 5 N.m LXM15MD40N4, 400 V, three phase || 5.7 N.m LXM05AD34N4, 380...480 V, three phase || 5.7 N.m LXM05BD34N4, 380...480 V, three phase || 5.7 N.m LXM05CD34N4, 3

Rohs Exemption Information:

Yes

Stator Electrical Time Constant:

6.15 ms 20 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Torque Constant:

1.22 N.m/A 120 °C

Continuous Stall Torque:

8 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.7 N.m LXM15LD21M3, 230 V, three phase || 6.7 N.m LXM15LD17N4, 230 V, three phase || 6.7 N.m LXM15LD17N4, 400 V, three phase || 6.7 N.m LXM15LD17N4, 480 V, three phase || 7.8 N.m LXM15LD28M3, 230 V, thre

Nominal Speed:

3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 1500 rpm LXM05CD42M3X, 200...240 V, three phase || 2000 rpm LXM15LD28M3, 230 V, three phase || 2500 rpm LXM15LD17N4, 230 V, three phase || 2500 rpm LXM15LD21M3, 230 V, three phase || 3000 rpm LXM05AD34

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Holding Brake:

without
