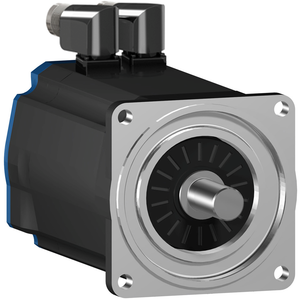

Schneider Electric BSH1003P31A2A Bsh Motor Iec 100Mm 7,8 Nm With Key Ip65
SKU:
BSH1003P31A2A
UPC:
3.38912E+12
MPN:
Condition:
New
Centring Collar Depth:
3.5 mm
Nominal Torque:
6.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 5 N.m LXM15MD28N4, 400 V, three phase || 5 N.m LXM15MD40N4, 400 V, three phase || 5.7 N.m LXM05AD34N4, 380...480 V, three phase || 5.7 N.m LXM05BD34N4, 380...480 V, three phase || 5.7 N.m LXM05CD34N4, 3
Holding Brake:
without
Maximum Mechanical Speed:
6000 rpm
Environmental Disclosure:
ENVPEP111049EN
Speed Feedback Resolution:
131072 points/turn
Maximum Radial Force Fr:
1050 N 1000 rpm || 660 N 4000 rpm || 730 N 3000 rpm || 830 N 2000 rpm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Motor Flange Size:
100 mm
Rotor Inertia:
3.22 kg.cm²
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Centring Collar Diameter:
95 mm
Electrical Connection:
rotatable right-angled connectors
Switching Frequency:
8 kHz
Shaft Diameter:
19 mm
Stator Resistance:
1.43 Ohm 20 °C
Net Weight:
7.4 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Mounting Holes:
4
Device Short Name:
BSH
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Second Shaft:
without second shaft end
Phase:
three phase
Length:
240.5 mm
Nominal Output Power:
2000 W LXM32.D30N4 10 A, 400 V, three phase || 1700 W LXM15LD17N4, 230 V, three phase || 1700 W LXM15LD21M3, 230 V, three phase || 1800 W LXM05AD34N4, 380...480 V, three phase || 1800 W LXM05BD34N4, 380...480 V, three phase || 1800 W LXM05CD34N4, 380
Back Emf Constant:
77 V/krpm 120 °C
Product Or Component Type:
servo motor
Sustainable Offer Status:
Green Premium product
Continuous Stall Current:
6.6 A
Mounting Holes Diameter:
9 mm
China Rohs Regulation:
X
Type Of Cooling:
natural convection
Mounting Support:
international standard flange
Maximum Current Irms:
28.3 A LXM15LD21M3 || 28.3 A LXM05BD42M3X || 28.3 A LXM05BD34N4 || 28.3 A LXM05CD28M2 || 28.3 A LXM05CD42M3X || 28.3 A LXM05CD34N4 || 28.3 A LXM32.D30N4 || 28.3 A LXM15LD28M3 || 28.3 A LXM15LD17N4 || 28.3 A LXM15MD28N4 || 28.3 A LXM15MD40N4 || 28.3 A
Feedback Type:
single turn SinCos Hiperface
Number Of Motor Stacks:
3
Rohs Exemption Information:
Yes
Shaft End:
keyed
Stator Electrical Time Constant:
6.15 ms 20 °C
Continuous Stall Torque:
8 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.7 N.m LXM15LD21M3, 230 V, three phase || 6.7 N.m LXM15LD17N4, 230 V, three phase || 6.7 N.m LXM15LD17N4, 400 V, three phase || 6.7 N.m LXM15LD17N4, 480 V, three phase || 7.8 N.m LXM15LD28M3, 230 V, thre
Torque Constant:
1.22 N.m/A 120 °C
Number Of Motor Poles:
8
Nominal Speed:
3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 1500 rpm LXM05CD42M3X, 200...240 V, three phase || 2000 rpm LXM15LD28M3, 230 V, three phase || 2500 rpm LXM15LD17N4, 230 V, three phase || 2500 rpm LXM15LD21M3, 230 V, three phase || 3000 rpm LXM05AD34
Maximum Permanent Current:
28.3 A
Shaft Length:
40 mm
[Us] Rated Supply Voltage:
480 V
Range Compatibility:
Lexium 05 || Lexium 15 || Lexium 32
Circularity Profile:
N/A
Product Compatibility:
LXM05AD28M2 200...240 V single phase || LXM15LD17N4 480 V three phase || LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three pha
Key Width:
30 mm
Mercury Free:
Yes
Peak Stall Torque:
28.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 19.69 N.m LXM15LD28M3, 230 V, three phase || 19.69 N.m LXM15MD28N4, 400 V, three phase || 19.69 N.m LXM15MD28N4, 480 V, three phase || 23.17 N.m LXM15MD40N4, 400 V, three phase || 23.17 N.m LXM15MD40N4
This product is part of the Lexium 32 & Motors range, an offer of servo motors from 0.4kW to 6kW. The 8-pole AC servo motor features a low moment of inertia with a maximum mechanical speed of...
