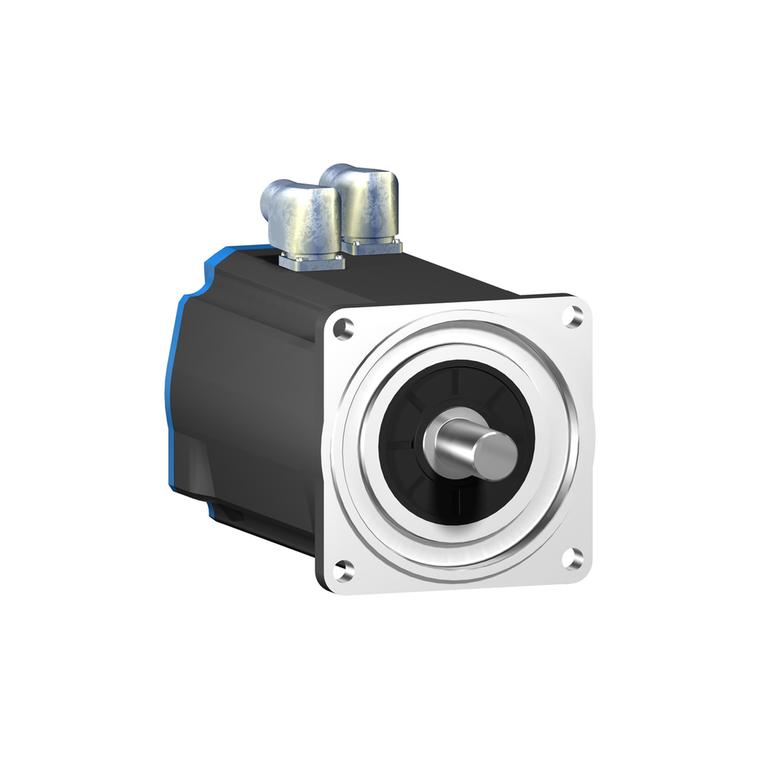

Schneider Electric BSH1401P31F2A Bsh Motor Iec 140Mm 11,4 Nm With Key Ip6
SKU:
BSH1401P31F2A
UPC:
3.38912E+12
MPN:
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Holding Torque:
23 N.m holding brake
Maximum Radial Force Fr:
1530 N 3000 rpm || 1760 N 2000 rpm || 2210 N 1000 rpm
Feedback Type:
single turn SinCos Hiperface
Nominal Output Power:
2500 W LXM32.D30N4 10 A, 400 V, three phase || 2150 W LXM15MD28N4, 480 V, three phase || 2150 W LXM15MD40N4, 480 V, three phase || 3000 W LXM32.D30N4 10 A, 480 V, three phase || 2000 W LXM15MD28N4, 400 V, three phase || 2000 W LXM15MD40N4, 400 V, thr
Mercury Free:
Yes
Stator Electrical Time Constant:
11.06 ms 20 °C
Circularity Profile:
N/A
Warranty:
18 months
Electrical Connection:
rotatable right-angled connectors
Holding Brake:
with
Centring Collar Depth:
3.5 mm
Stator Resistance:
1.41 Ohm 20 °C
Type Of Cooling:
natural convection
Length:
255.5 mm
Number Of Mounting Holes:
4
[Us] Rated Supply Voltage:
480 V
Key Width:
40 mm
Motor Flange Size:
140 mm
Net Weight:
13 kg
Sustainable Offer Status:
Green Premium product
Device Short Name:
BSH
Circle Diameter Of The Mounting Holes:
165 mm
Continuous Stall Current:
7.8 A
Number Of Motor Stacks:
1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Compatibility:
Lexium 15 || Lexium 32 || Lexium 05
Second Shaft:
without second shaft end
Shaft Diameter:
24 mm
Nominal Torque:
9.5 N.m LXM32.D30N4 10 A, 400 V, three phase || 9.1 N.m LXM15LD28M3, 230 V, three phase || 9.1 N.m LXM15MD28N4, 230 V, three phase || 9.5 N.m LXM32.D30N4 10 A, 480 V, three phase || 6.8 N.m LXM15MD28N4, 480 V, three phase || 6.8 N.m LXM15MD40N4, 480
Continuous Power:
3.6 W
Back Emf Constant:
100 V/krpm 120 °C
Maximum Axial Force Fa:
0.2 x Fr
Speed Feedback Resolution:
131072 points/turn
Product Or Component Type:
servo motor
Maximum Mechanical Speed:
4000 rpm
Centring Collar Diameter:
130 mm
Continuous Stall Torque:
11.1 N.m LXM32.D30N4 10 A, 400 V, three phase || 11.4 N.m LXM05BD34N4, 380...480 V, three phase || 11.4 N.m LXM05CD34N4, 380...480 V, three phase || 11.1 N.m LXM32.D30N4 10 A, 480 V, three phase || 11.1 N.m LXM15MD28N4, 400 V, three phase || 11.1 N.m
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Shaft End:
keyed
Peak Stall Torque:
27 N.m LXM32.D30N4 10 A, 400 V, three phase || 23.33 N.m LXM05BD34N4, 380...480 V, three phase || 23.33 N.m LXM05CD34N4, 380...480 V, three phase || 27 N.m LXM32.D30N4 10 A, 480 V, three phase || 23.33 N.m LXM15MD28N4, 230 V, three phase || 23.33 N.m
China Rohs Regulation:
X
Pvc Free:
Yes
Mounting Support:
international standard flange
Product Compatibility:
LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three phase || LXM15MD28N4 480 V three phase || LXM15MD40N4 400 V three phase || L
Maximum Current Irms:
20.8 A LXM15LD28M3 || 20.8 A LXM15MD28N4 || 20.8 A LXM15MD40N4 || 20.8 A LXM05AD34N4 || 20.8 A LXM05BD34N4 || 20.8 A LXM05CD34N4 || 20.8 A LXM32.D30N4
Rotor Inertia:
9.21 kg.cm²
Maximum Permanent Current:
20.8 A
Torque Constant:
1.43 N.m/A 120 °C
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Switching Frequency:
8 kHz
Nominal Speed:
2500 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM15MD28N4, 480 V, three phase || 3000 rpm LXM15MD40N4, 480 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase || 3000 rpm LXM05AD34N4, 380...480 V, three phase || 3000 rpm LXM05
