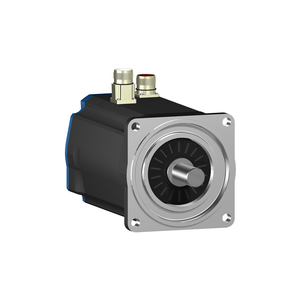

Schneider Electric BSH1402T21A2P Bsh Motor Iec 140Mm 19,2 Nm Wo Key Ip65
SKU:
BSH1402T21A2P
UPC:
3.38912E+12
MPN:
Condition:
New
Nominal Output Power:
3900 W LXM32.D72N4 24 A, 400 V, three phase || 3900 W LXM32.D72N4 24 A, 480 V, three phase || 2900 W LXM05AD42M3X, 200...240 V, three phase || 2900 W LXM05BD42M3X, 200...240 V, three phase || 2900 W LXM05CD42M3X, 200...240 V, three phase
Circularity Profile:
N/A
China Rohs Regulation:
X
Maximum Permanent Current:
75.2 A
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase
Stator Inductance:
7.4 mH 20 °C
Product Or Component Type:
servo motor
Motor Flange Size:
140 mm
Mercury Free:
Yes
Net Weight:
16.6 kg
[Us] Rated Supply Voltage:
480 V
Centring Collar Depth:
3.5 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Back Emf Constant:
101 V/krpm 120 °C
Maximum Current Irms:
72 A LXM32.D72N4 || 75.2 A LXM05AD42M3X || 75.2 A LXM05BD42M3X || 75.2 A LXM05CD42M3X
Length:
272.5 mm
Feedback Type:
single turn SinCos Hiperface
Environmental Disclosure:
ENVPEP111049EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Compatibility:
Lexium 32 || Lexium 05
Mounting Holes Diameter:
11 mm
Second Shaft:
without second shaft end
Continuous Power:
4.2 W
Holding Brake:
without
Switching Frequency:
8 kHz
Stator Electrical Time Constant:
12.1 ms 20 °C
Stator Resistance:
0.6 Ohm 20 °C
Number Of Motor Poles:
10
Torque Constant:
1.47 N.m/A 120 °C
Speed Feedback Resolution:
131072 points/turn
Circle Diameter Of The Mounting Holes:
165 mm
Continuous Stall Current:
22.5 A
Shaft Diameter:
24 mm
Phase:
three phase
Electrical Connection:
rotatable right-angled connectors
Centring Collar Diameter:
130 mm
Maximum Mechanical Speed:
4000 rpm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Axial Force Fa:
0.2 x Fr
Maximum Radial Force Fr:
1680 N 3000 rpm || 1930 N 2000 rpm || 2430 N 1000 rpm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Motor Stacks:
2
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Shaft Length:
50 mm
Device Short Name:
BSH
Mounting Support:
international standard flange
Type Of Cooling:
natural convection
Nominal Torque:
12.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.3 N.m LXM32.D72N4 24 A, 480 V, three phase || 9.2 N.m LXM05AD42M3X, 200...240 V, three phase || 9.2 N.m LXM05BD42M3X, 200...240 V, three phase || 9.2 N.m LXM05CD42M3X, 200...240 V, three phase
Shaft End:
untapped
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Continuous Stall Torque:
19.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 19.5 N.m LXM32.D72N4 24 A, 480 V, three phase || 14.4 N.m LXM05AD42M3X, 200...240 V, three phase || 14.4 N.m LXM05BD42M3X, 200...240 V, three phase || 14.4 N.m LXM05CD42M3X, 200...240 V, three phase
Warranty:
18 months
Peak Stall Torque:
59.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 59.3 N.m LXM32.D72N4 24 A, 480 V, three phase || 24.56 N.m LXM05AD42M3X, 200...240 V, three phase || 24.56 N.m LXM05BD42M3X, 200...240 V, three phase
Product Compatibility:
LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase
