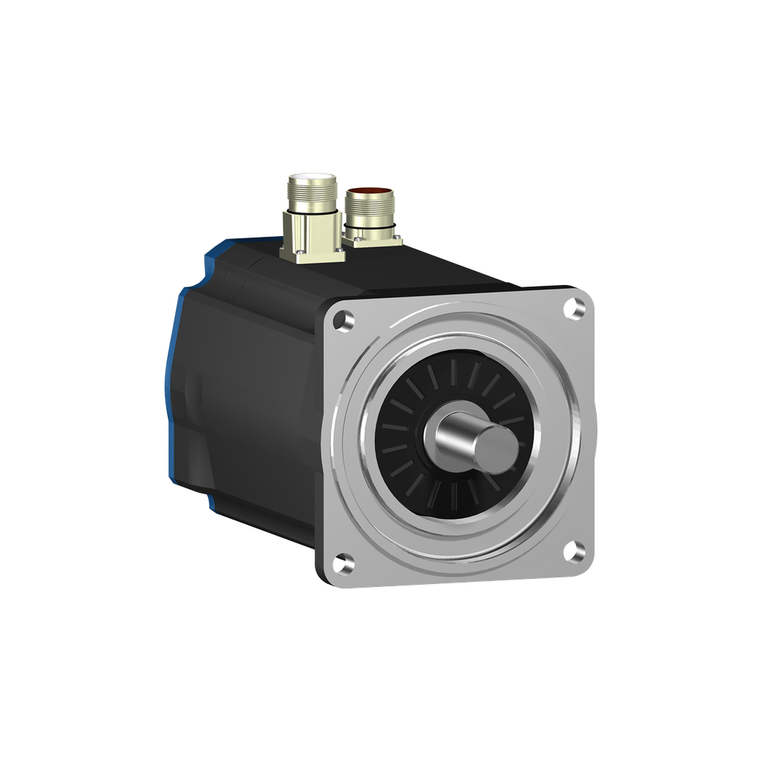

Schneider Electric BSH1402T21F1P Bsh Motor Iec 140Mm 19,2 Nm Wo Key Ip65

Schneider Electric BSH1402T21F1P Bsh Motor Iec 140Mm 19,2 Nm Wo Key Ip65

Schneider Electric
SKU:
BSH1402T21F1P
|
UPC:
3389118361256
$4,115.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
AC servo motor BSH, Lexium 32, 14.4N.m, 3000rpm, untapped shaft, with brake, IP65
Additional Information
Rotor Inertia:
14.48 kg.cm²
Maximum Radial Force Fr:
1680 N 3000 rpm || 1930 N 2000 rpm || 2430 N 1000 rpm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Stator Inductance:
7.4 mH 20 °C
Warranty:
18 months
[Us] Rated Supply Voltage:
480 V
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase
Nominal Torque:
12.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.3 N.m LXM32.D72N4 24 A, 480 V, three phase || 9.2 N.m LXM05AD42M3X, 200...240 V, three phase || 9.2 N.m LXM05BD42M3X, 200...240 V, three phase || 9.2 N.m LXM05CD42M3X, 200...240 V, three phase
Shaft Length:
50 mm
Feedback Type:
single turn SinCos Hiperface
Second Shaft:
without second shaft end
Range Compatibility:
Lexium 32 || Lexium 05
Torque Constant:
1.47 N.m/A 120 °C
Mounting Holes Diameter:
11 mm
Environmental Disclosure:
ENVPEP111049EN
Back Emf Constant:
101 V/krpm 120 °C
Mounting Support:
international standard flange
Continuous Stall Torque:
19.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 19.5 N.m LXM32.D72N4 24 A, 480 V, three phase || 14.4 N.m LXM05AD42M3X, 200...240 V, three phase || 14.4 N.m LXM05BD42M3X, 200...240 V, three phase || 14.4 N.m LXM05CD42M3X, 200...240 V, three phase
Net Weight:
17.7 kg
Mercury Free:
Yes
Maximum Current Irms:
72 A LXM32.D72N4 || 75.2 A LXM05AD42M3X || 75.2 A LXM05BD42M3X || 75.2 A LXM05CD42M3X
Brake Pull-In Power:
24 W
Continuous Stall Current:
22.5 A
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Centring Collar Diameter:
130 mm
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Motor Poles:
10
Type Of Cooling:
natural convection
Continuous Power:
4.2 W
Device Short Name:
BSH
Peak Stall Torque:
59.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 59.3 N.m LXM32.D72N4 24 A, 480 V, three phase || 24.56 N.m LXM05AD42M3X, 200...240 V, three phase || 24.56 N.m LXM05BD42M3X, 200...240 V, three phase
Centring Collar Depth:
3.5 mm
Number Of Motor Stacks:
2
Nominal Output Power:
3900 W LXM32.D72N4 24 A, 400 V, three phase || 3900 W LXM32.D72N4 24 A, 480 V, three phase || 2900 W LXM05AD42M3X, 200...240 V, three phase || 2900 W LXM05BD42M3X, 200...240 V, three phase || 2900 W LXM05CD42M3X, 200...240 V, three phase
Switching Frequency:
8 kHz
Motor Flange Size:
140 mm
Circle Diameter Of The Mounting Holes:
165 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stator Electrical Time Constant:
12.1 ms 20 °C
Stator Resistance:
0.6 Ohm 20 °C
Number Of Mounting Holes:
4
Electrical Connection:
straight connectors
Maximum Mechanical Speed:
4000 rpm
Maximum Axial Force Fa:
0.2 x Fr
Product Compatibility:
LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase
Maximum Permanent Current:
75.2 A
Phase:
three phase
Length:
310.5 mm
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Shaft End:
untapped
Holding Brake:
with
Shaft Diameter:
24 mm
Speed Feedback Resolution:
131072 points/turn
Holding Torque:
23 N.m holding brake
Product Or Component Type:
servo motor
