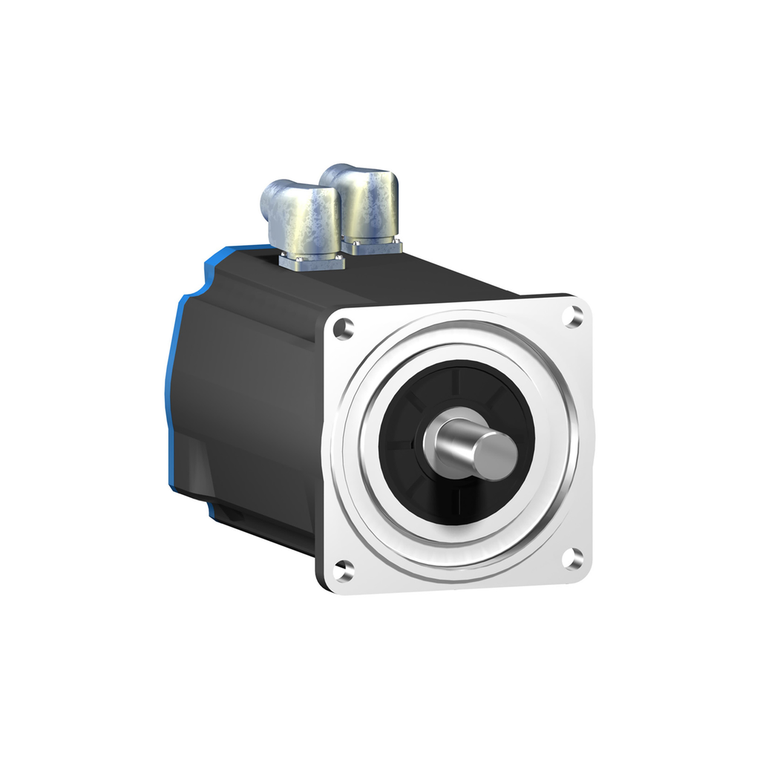

Schneider Electric BSH1403T01A2P Bsh Motor Iec 140Mm 27,8 Nm Wo Key Ip40

(No reviews yet) Write a Review

Write a Review

Schneider Electric BSH1403T01A2P Bsh Motor Iec 140Mm 27,8 Nm Wo Key Ip40

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BSH1403T01A2P

UPC:

3606485201290

MPN:

Condition:

New

Maximum Permanent Current:

81.3 A

Ip Degree Of Protection:

IP50 standard

Number Of Motor Stacks:

3

Continuous Stall Torque:

27.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 27.8 N.m LXM32.D72N4 24 A, 480 V, three phase

Number Of Motor Poles:

10

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

BSH

Sustainable Offer Status:

Green Premium product

Nominal Torque:

12.9 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.9 N.m LXM32.D72N4 24 A, 480 V, three phase

Continuous Stall Current:

22.3 A

Shaft Diameter:

24 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Current Irms:

72 A LXM32.D72N4

Back Emf Constant:

105 V/krpm 120 °C

Mounting Support:

international standard

Switching Frequency:

8 kHz

Peak Stall Torque:

90.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 90.2 N.m LXM32.D72N4 24 A, 480 V, three phase

Product Compatibility:

LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Centring Collar Depth:

3.5 mm

Mounting Holes Diameter:

11 mm

Number Of Mounting Holes:

4

Motor Flange Size:

140 mm

Shaft Length:

50 mm

Centring Collar Diameter:

130 mm

Range Compatibility:

Lexium 32

[Us] Rated Supply Voltage:

480 V

Type Of Cooling:

natural convection

Holding Brake:

without

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Maximum Mechanical Speed:

4800 rpm

Stator Resistance:

0.4 Ohm 20 °C

Stator Inductance:

5.1 mH 20 °C

Rohs Exemption Information:

Yes

Net Weight:

21.2 kg

Torque Constant:

1.58 N.m/A 120 °C

Length:

327.5 mm

Warranty:

18 months

Nominal Output Power:

4100 W LXM32.D72N4 24 A, 400 V, three phase || 4100 W LXM32.D72N4 24 A, 480 V, three phase

Maximum Radial Force Fr:

1780 N 3000 rpm || 2030 N 2000 rpm || 2560 N 1000 rpm

Phase:

three phase

Product Or Component Type:

servo motor

Rotor Inertia:

12.68 kg.cm²

Circle Diameter Of The Mounting Holes:

165 mm

Continuous Power:

3.3 W

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Speed Feedback Resolution:

131072 points/turn

Second Shaft:

without second shaft end

Electrical Connection:

rotatable right-angled connectors

Maximum Axial Force Fa:

0.2 x Fr

Stator Electrical Time Constant:

12.75 ms 20 °C

Feedback Type:

single turn SinCos Hiperface

Shaft End:

untapped

Circularity Profile:

N/A

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP111049EN
