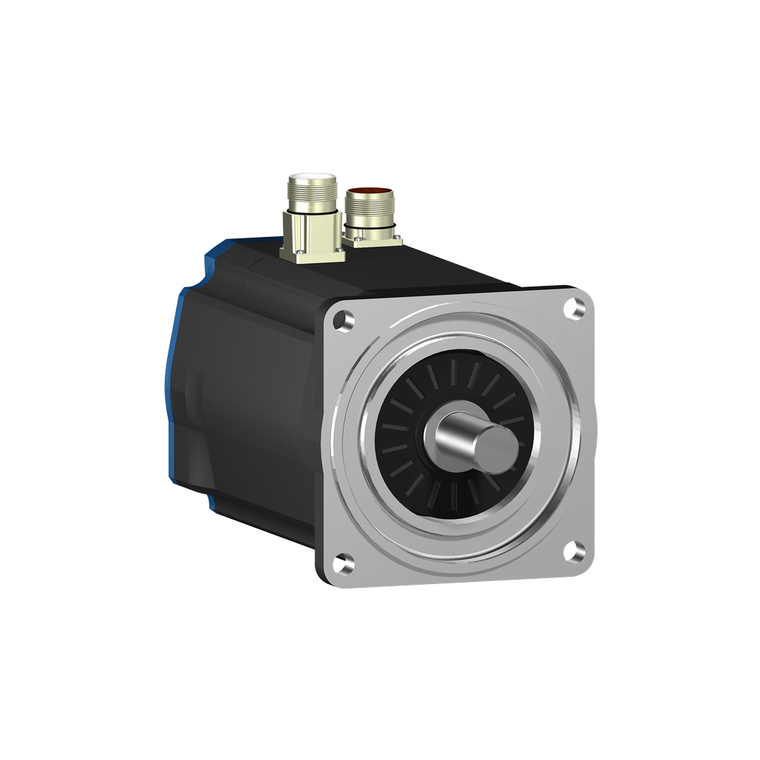

Schneider Electric BSH1404P01F1P Bsh Motor Iec 140Mm 32,1 Nm Wo Key Ip40

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BSH1404P01F1P Bsh Motor Iec 140Mm 32,1 Nm Wo Key Ip40

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BSH1404P01F1P

UPC:

3389118361416

MPN:

Condition:

New

Pvc Free:

Yes

Warranty:

18 months

Centring Collar Diameter:

130 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Number Of Mounting Holes:

4

Length:

420.5 mm

Feedback Type:

single turn SinCos Hiperface

Type Of Cooling:

natural convection

Torque Constant:

1.57 N.m/A 120 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Torque:

33.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 32.1 N.m LXM05AD57N4, 380...480 V, three phase || 32.1 N.m LXM05BD57N4, 380...480 V, three phase || 32.1 N.m LXM05CD57N4, 380...480 V, three phase

Mounting Support:

international standard flange

Holding Brake:

with

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Compatibility:

LXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase

Product Or Component Type:

servo motor

Range Compatibility:

Lexium 32 || Lexium 05

Maximum Radial Force Fr:

1840 N 3000 rpm || 2110 N 2000 rpm || 2660 N 1000 rpm

Device Short Name:

BSH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Current Irms:

72 A LXM32.D72N4 || 95.6 A LXM05AD57N4 || 95.6 A LXM05BD57N4 || 95.6 A LXM05CD57N4

Mounting Holes Diameter:

11 mm

Stator Inductance:

3.9 mH 20 °C

Continuous Stall Current:

21.3 A

Centring Collar Depth:

3.5 mm

Number Of Motor Poles:

10

Circularity Profile:

N/A

Shaft Diameter:

24 mm

Nominal Torque:

19 N.m LXM32.D72N4 24 A, 400 V, three phase || 19 N.m LXM32.D72N4 24 A, 480 V, three phase || 10.8 N.m LXM05AD57N4, 380...480 V, three phase || 10.8 N.m LXM05BD57N4, 380...480 V, three phase || 10.8 N.m LXM05CD57N4, 380...480 V, three phase

Circle Diameter Of The Mounting Holes:

165 mm

Peak Stall Torque:

103.6 N.m LXM32.D72N4 24 A, 400 V, three phase || 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase || 63.09 N.m LXM05AD57N4, 380...480 V, three phase || 63.09 N.m LXM05BD57N4, 380...480 V, three phase || 63.09 N.m LXM05CD57N4, 380...480 V, three phase

Maximum Axial Force Fa:

0.2 x Fr

Brake Pull-In Power:

26 W

Electrical Connection:

straight connectors

Environmental Disclosure:

ENVPEP111049EN

China Rohs Regulation:

X

Shaft End:

untapped

Sustainable Offer Status:

Green Premium product

Switching Frequency:

8 kHz

Speed Feedback Resolution:

131072 points/turn

[Us] Rated Supply Voltage:

480 V

Net Weight:

27.8 kg

Phase:

three phase

Holding Torque:

36 N.m holding brake

Back Emf Constant:

104 V/krpm 120 °C

Second Shaft:

without second shaft end

Rohs Exemption Information:

Yes

Stator Resistance:

0.28 Ohm 20 °C

Shaft Length:

50 mm

Ip Degree Of Protection:

IP50 standard

Motor Flange Size:

140 mm

Nominal Output Power:

5000 W LXM32.D72N4 24 A, 400 V, three phase || 5000 W LXM32.D72N4 24 A, 480 V, three phase || 3400 W LXM05AD57N4, 380...480 V, three phase || 3400 W LXM05BD57N4, 380...480 V, three phase || 3400 W LXM05CD57N4, 380...480 V, three phase

Nominal Speed:

2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase

Stator Electrical Time Constant:

13.93 ms 20 °C

Continuous Power:

4.33 W

Maximum Mechanical Speed:

4000 rpm

Mercury Free:

Yes

Number Of Motor Stacks:

4

Rotor Inertia:

29.2 kg.cm²

Maximum Permanent Current:

95.6 A

Datasheet:

View
