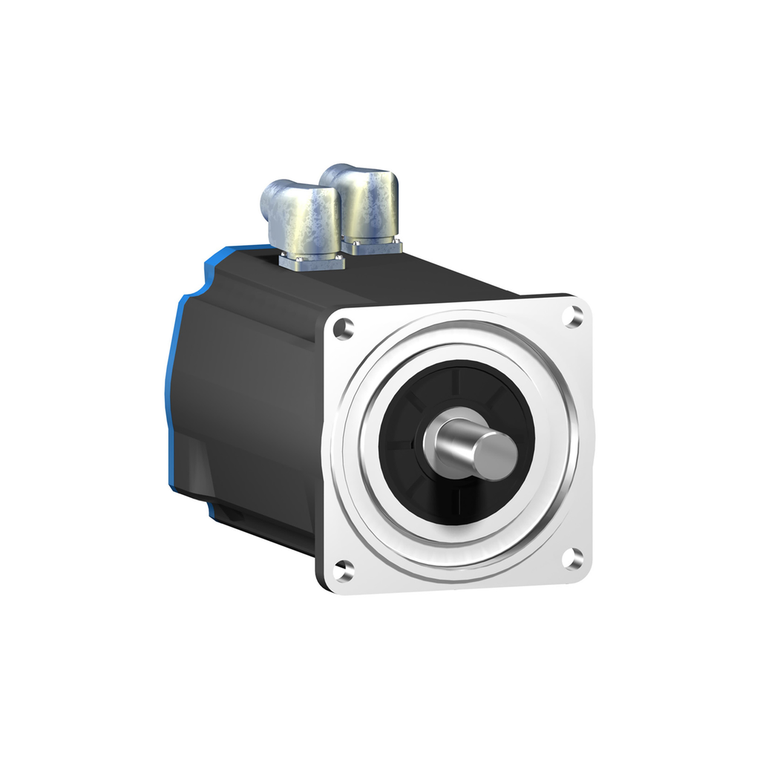

Schneider Electric BSH1404P01F2P Bsh Motor Iec 140Mm 32,1 Nm Wo Key Ip40

SKU:

BSH1404P01F2P

UPC:

3389118361423

MPN:

Condition:

New

Brake Pull-In Power:

26 W

Range Compatibility:

Lexium 05 || Lexium 32

Pvc Free:

Yes

Holding Torque:

36 N.m holding brake

Electrical Connection:

rotatable right-angled connectors

Shaft Diameter:

24 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Mounting Holes Diameter:

11 mm

Continuous Stall Torque:

33.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 32.1 N.m LXM05AD57N4, 380...480 V, three phase || 32.1 N.m LXM05BD57N4, 380...480 V, three phase || 32.1 N.m LXM05CD57N4, 380...480 V, three phase

Circularity Profile:

N/A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Cooling:

natural convection

Warranty:

18 months

Circle Diameter Of The Mounting Holes:

165 mm

Sustainable Offer Status:

Green Premium product

Stator Resistance:

0.28 Ohm 20 °C

Peak Stall Torque:

103.6 N.m LXM32.D72N4 24 A, 400 V, three phase || 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase || 63.09 N.m LXM05AD57N4, 380...480 V, three phase || 63.09 N.m LXM05BD57N4, 380...480 V, three phase || 63.09 N.m LXM05CD57N4, 380...480 V, three phase

Net Weight:

27.8 kg

Feedback Type:

single turn SinCos Hiperface

Length:

420.5 mm

Motor Flange Size:

140 mm

Nominal Output Power:

5000 W LXM32.D72N4 24 A, 400 V, three phase || 5000 W LXM32.D72N4 24 A, 480 V, three phase || 3400 W LXM05AD57N4, 380...480 V, three phase || 3400 W LXM05BD57N4, 380...480 V, three phase || 3400 W LXM05CD57N4, 380...480 V, three phase

Product Compatibility:

LXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Support:

international standard flange

Nominal Torque:

19 N.m LXM32.D72N4 24 A, 400 V, three phase || 19 N.m LXM32.D72N4 24 A, 480 V, three phase || 10.8 N.m LXM05AD57N4, 380...480 V, three phase || 10.8 N.m LXM05BD57N4, 380...480 V, three phase || 10.8 N.m LXM05CD57N4, 380...480 V, three phase

Nominal Speed:

2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase

Centring Collar Diameter:

130 mm

Maximum Permanent Current:

95.6 A

Rohs Exemption Information:

Yes

Holding Brake:

with

China Rohs Regulation:

X

Number Of Motor Stacks:

4

Continuous Stall Current:

21.3 A

Ip Degree Of Protection:

IP50 standard

Shaft Length:

50 mm

Second Shaft:

without second shaft end

Number Of Mounting Holes:

4

Stator Electrical Time Constant:

13.93 ms 20 °C

Centring Collar Depth:

3.5 mm

Back Emf Constant:

104 V/krpm 120 °C

Maximum Axial Force Fa:

0.2 x Fr

Switching Frequency:

8 kHz

Torque Constant:

1.57 N.m/A 120 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Current Irms:

72 A LXM32.D72N4 || 95.6 A LXM05AD57N4 || 95.6 A LXM05BD57N4 || 95.6 A LXM05CD57N4

Continuous Power:

4.33 W

Maximum Radial Force Fr:

1840 N 3000 rpm || 2110 N 2000 rpm || 2660 N 1000 rpm

Rotor Inertia:

29.2 kg.cm²

Device Short Name:

BSH

Environmental Disclosure:

ENVPEP111049EN

Number Of Motor Poles:

10

Shaft End:

untapped

Maximum Mechanical Speed:

4000 rpm

Product Or Component Type:

servo motor

[Us] Rated Supply Voltage:

480 V

Speed Feedback Resolution:

131072 points/turn

Stator Inductance:

3.9 mH 20 °C

Phase:

three phase
