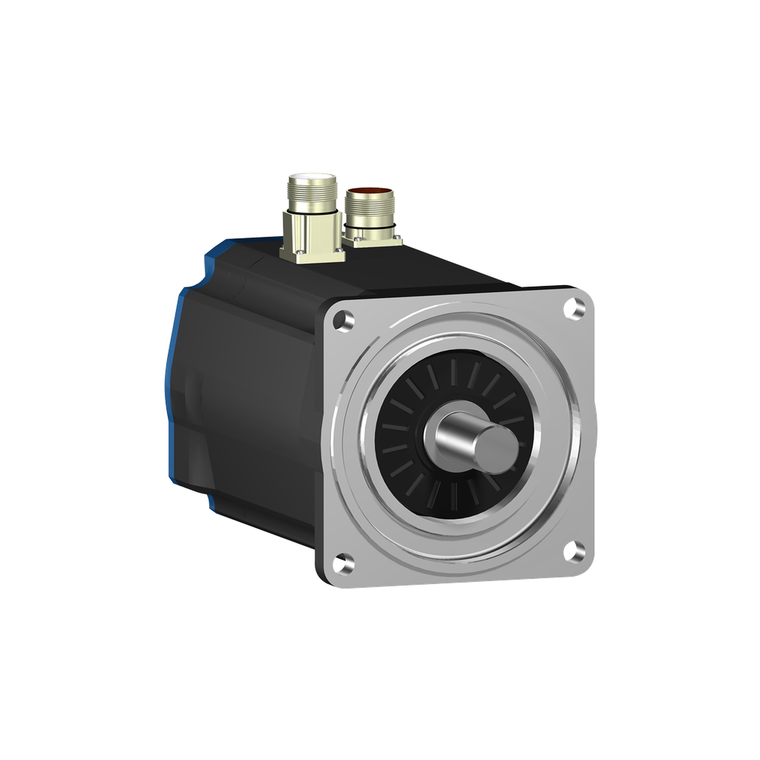

Schneider Electric BSH1404P22F1P Bsh Motor Iec 140Mm 32,1 Nm Wo Key Ip65

(No reviews yet) Write a Review
SKU:
BSH1404P22F1P
UPC:
3389118361614
Condition:
New
Continuous Stall Current:
21.3 A
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nominal Speed:
2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase
Product Compatibility:
LXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase
Maximum Radial Force Fr:
1840 N 3000 rpm || 2110 N 2000 rpm || 2660 N 1000 rpm
Phase:
three phase
Nominal Output Power:
5000 W LXM32.D72N4 24 A, 400 V, three phase || 5000 W LXM32.D72N4 24 A, 480 V, three phase || 3400 W LXM05AD57N4, 380...480 V, three phase || 3400 W LXM05BD57N4, 380...480 V, three phase || 3400 W LXM05CD57N4, 380...480 V, three phase
Warranty:
18 months
Maximum Axial Force Fa:
0.2 x Fr
Type Of Cooling:
natural convection
Stator Electrical Time Constant:
13.93 ms 20 °C
Torque Constant:
1.57 N.m/A 120 °C
[Us] Rated Supply Voltage:
480 V
Back Emf Constant:
104 V/krpm 120 °C
Holding Brake:
with
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Stator Resistance:
0.28 Ohm 20 °C
Brake Pull-In Power:
26 W
Nominal Torque:
19 N.m LXM32.D72N4 24 A, 400 V, three phase || 19 N.m LXM32.D72N4 24 A, 480 V, three phase || 10.8 N.m LXM05AD57N4, 380...480 V, three phase || 10.8 N.m LXM05BD57N4, 380...480 V, three phase || 10.8 N.m LXM05CD57N4, 380...480 V, three phase
Centring Collar Diameter:
130 mm
Feedback Type:
multiturn SinCos Hiperface
Speed Feedback Resolution:
131072 points/turn x 4096 turns
China Rohs Regulation:
X
Holding Torque:
36 N.m holding brake
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Range Compatibility:
Lexium 32 || Lexium 05
Sustainable Offer Status:
Green Premium product
Number Of Mounting Holes:
4
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Stator Inductance:
3.9 mH 20 °C
Shaft Length:
50 mm
Mounting Holes Diameter:
11 mm
Mercury Free:
Yes
Shaft Diameter:
24 mm
Number Of Motor Stacks:
4
Circle Diameter Of The Mounting Holes:
165 mm
Switching Frequency:
8 kHz
Centring Collar Depth:
3.5 mm
Second Shaft:
without second shaft end
Motor Flange Size:
140 mm
Electrical Connection:
straight connectors
Shaft End:
untapped
Mounting Support:
international standard flange
Net Weight:
27.8 kg
Rohs Exemption Information:
Yes
Rotor Inertia:
29.2 kg.cm²
Circularity Profile:
N/A
Product Or Component Type:
servo motor
Length:
420.5 mm
Continuous Power:
4.33 W
Continuous Stall Torque:
33.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 32.1 N.m LXM05AD57N4, 380...480 V, three phase || 32.1 N.m LXM05BD57N4, 380...480 V, three phase || 32.1 N.m LXM05CD57N4, 380...480 V, three phase
Device Short Name:
BSH
Environmental Disclosure:
ENVPEP111049EN
Maximum Mechanical Speed:
4000 rpm
Peak Stall Torque:
103.6 N.m LXM32.D72N4 24 A, 400 V, three phase || 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase || 63.09 N.m LXM05AD57N4, 380...480 V, three phase || 63.09 N.m LXM05BD57N4, 380...480 V, three phase || 63.09 N.m LXM05CD57N4, 380...480 V, three phase
Maximum Current Irms:
72 A LXM32.D72N4 || 95.6 A LXM05AD57N4 || 95.6 A LXM05BD57N4 || 95.6 A LXM05CD57N4
Number Of Motor Poles:
10
Maximum Permanent Current:
95.6 A
Datasheet:
View
$6,009.33

Description

AC servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, untapped shaft, with brake, IP65
