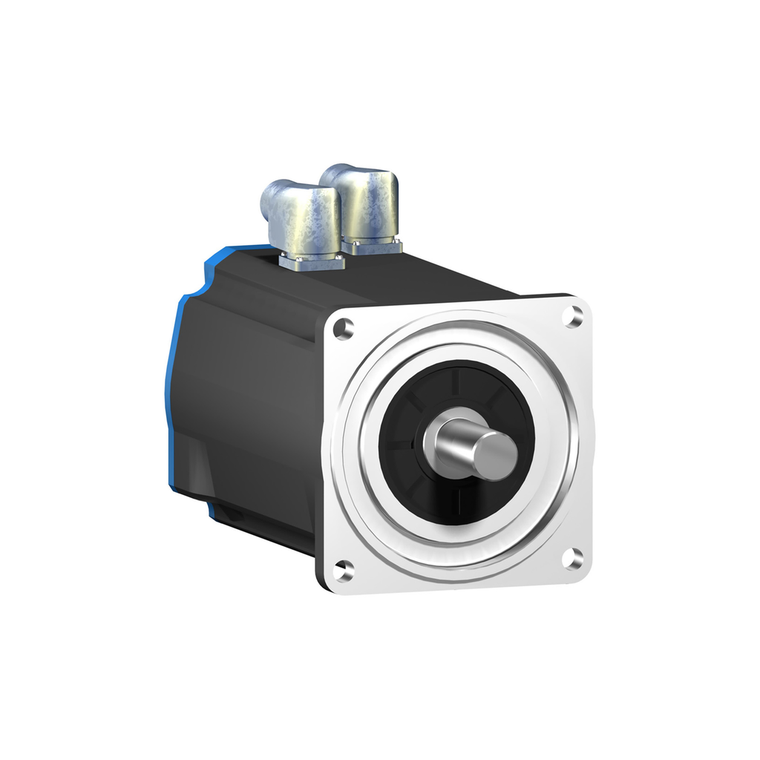

Schneider Electric BSH1404P32F2P Bsh Motor Iec 140Mm 32,1 Nm With Key Ip6

SKU:

BSH1404P32F2P

UPC:

3.38912E+12

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Sustainable Offer Status:

Green Premium product

Nominal Speed:

2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase

Shaft Diameter:

24 mm

Brake Pull-In Power:

26 W

Environmental Disclosure:

ENVPEP111049EN

Switching Frequency:

8 kHz

Product Or Component Type:

servo motor

Key Width:

40 mm

Number Of Mounting Holes:

4

Back Emf Constant:

104 V/krpm 120 °C

Centring Collar Depth:

3.5 mm

Shaft Length:

50 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electrical Connection:

rotatable right-angled connectors

Continuous Stall Current:

21.3 A

Maximum Radial Force Fr:

1840 N 3000 rpm || 2110 N 2000 rpm || 2660 N 1000 rpm

Motor Flange Size:

140 mm

Circle Diameter Of The Mounting Holes:

165 mm

Second Shaft:

without second shaft end

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Mounting Holes Diameter:

11 mm

Maximum Mechanical Speed:

4000 rpm

Stator Inductance:

3.9 mH 20 °C

Shaft End:

keyed

Holding Brake:

with

Nominal Output Power:

5000 W LXM32.D72N4 24 A, 400 V, three phase || 5000 W LXM32.D72N4 24 A, 480 V, three phase || 3400 W LXM05AD57N4, 380...480 V, three phase || 3400 W LXM05BD57N4, 380...480 V, three phase || 3400 W LXM05CD57N4, 380...480 V, three phase

Stator Resistance:

0.28 Ohm 20 °C

Maximum Permanent Current:

95.6 A

Continuous Power:

4.33 W

Mercury Free:

Yes

Circularity Profile:

N/A

Speed Feedback Resolution:

131072 points/turn x 4096 turns

China Rohs Regulation:

X

Device Short Name:

BSH

Nominal Torque:

19 N.m LXM32.D72N4 24 A, 400 V, three phase || 19 N.m LXM32.D72N4 24 A, 480 V, three phase || 10.8 N.m LXM05AD57N4, 380...480 V, three phase || 10.8 N.m LXM05BD57N4, 380...480 V, three phase || 10.8 N.m LXM05CD57N4, 380...480 V, three phase

Torque Constant:

1.57 N.m/A 120 °C

Pvc Free:

Yes

Feedback Type:

multiturn SinCos Hiperface

Stator Electrical Time Constant:

13.93 ms 20 °C

Centring Collar Diameter:

130 mm

Number Of Motor Poles:

10

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

480 V

Product Compatibility:

LXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase

Maximum Current Irms:

72 A LXM32.D72N4 || 95.6 A LXM05AD57N4 || 95.6 A LXM05BD57N4 || 95.6 A LXM05CD57N4

Peak Stall Torque:

103.6 N.m LXM32.D72N4 24 A, 400 V, three phase || 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase || 63.09 N.m LXM05AD57N4, 380...480 V, three phase || 63.09 N.m LXM05BD57N4, 380...480 V, three phase || 63.09 N.m LXM05CD57N4, 380...480 V, three phase

Continuous Stall Torque:

33.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 32.1 N.m LXM05AD57N4, 380...480 V, three phase || 32.1 N.m LXM05BD57N4, 380...480 V, three phase || 32.1 N.m LXM05CD57N4, 380...480 V, three phase

Warranty:

18 months

Holding Torque:

36 N.m holding brake

Length:

420.5 mm

Mounting Support:

international standard flange

Rohs Exemption Information:

Yes

Range Compatibility:

Lexium 05 || Lexium 32

Number Of Motor Stacks:

4

Phase:

three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Cooling:

natural convection

Rotor Inertia:

29.2 kg.cm²

Maximum Axial Force Fa:

0.2 x Fr

Net Weight:

27.8 kg

Datasheet:

View
