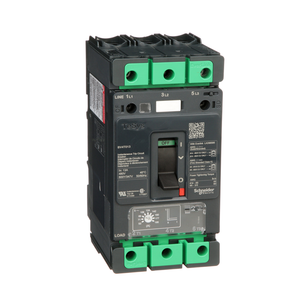

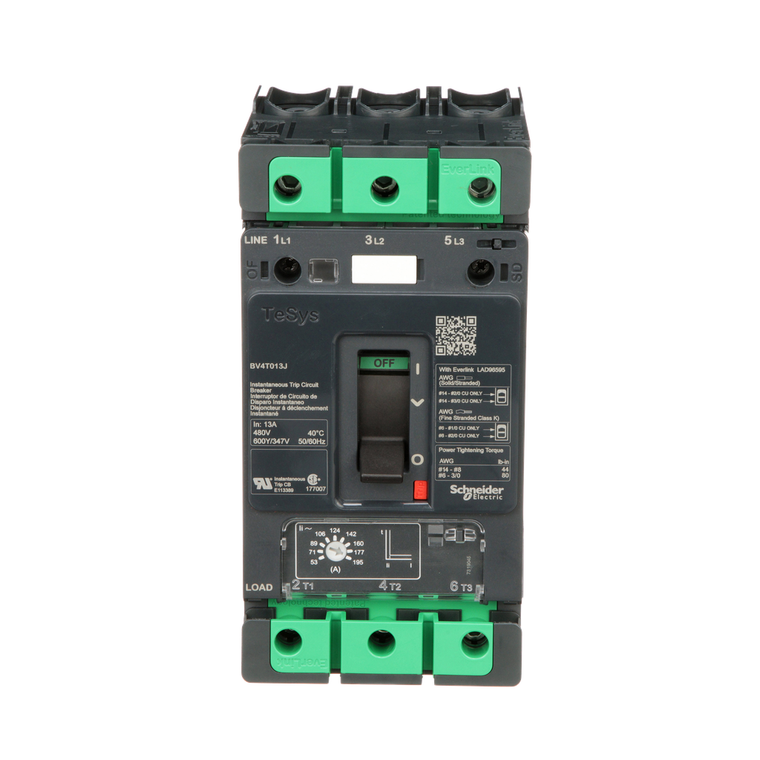

Schneider Electric BV4T013J Motor Circuit Protector 600Y/347V 13A
Schneider Electric
$500.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 13A rating. It also has an adjustable instantaneous trip rating of 53 to 195 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
- Pvc Free:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Connection Pitch:
- 27 mm
- Trip Unit Technology:
- magnetic
- Number Of Slots:
- 1 auxiliary switch open/close contact, plug-in || 1 voltage release electrical remote tripping, plug-in || 1 alarm switch fault signalling contact, plug-in
- Performance Level:
- high performance
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1704004EN
- Ik Degree Of Protection:
- IK07 IEC 62262
- Connections - Terminals:
- 2 EverLink BTR screw connectors 1.5-50 mm² AWG 6...AWG 1/0), flexible copper || 2 EverLink BTR screw connectors 1.5-70 mm² AWG 14...AWG 2/0), solid copper
- Ip Degree Of Protection:
- IP40 front face IEC 60529
- Trip Unit Rating:
- 53-195 A 40 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Certifications:
- UL || CSA
- Ambient Air Temperature For Storage:
- -50-85 °C
- Net Weight:
- 1.5 kg
- Depth:
- 116 mm
- Protection Type:
- short-circuit
- Device Application:
- motor
- Height:
- 162 mm
- Wire Stripping Length:
- 20 mm
- Width:
- 81 mm
- Standards:
- UL 489 || CSA C22.2 No 5
- Halogen Content Performance:
- Halogen free plastic parts product
- Eu Rohs Directive:
- Compliant
- Mechanical Robustness:
- vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
- Range:
- TeSys
- [Ue] Rated Operational Voltage:
- 600Y/347 V AC 50/60 Hz
- Utilisation Category:
- category A
- Environmental Disclosure:
- ENVPEP1704004EN
- Product Or Component Type:
- Motor Circuit Protector
- Operating Altitude:
- > 2000...5000 m with derating || 6561.68 ft (2000 m) without derating
- Mechanical Durability:
- 40000 cycles
- Color:
- Gray RAL 7016)
- Tightening Torque:
- 5-5 N.m 10-10 mm² (AWG 8) || 9-9 N.m 16-16 mm² (AWG 6)
- Mounting Mode:
- by clips || by screws
- Line Rated Current:
- 13 A 40 °C
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Poles Description:
- 3P
- Local Signalling:
- for presence of auxiliary contacts flag (green)
- Control Type:
- toggle
- Sustainable Offer Status:
- Green Premium product
- Mounting Support:
- 75 mm symmetrical DIN rail || 35 mm asymmetrical DIN rail || plate
- Electrical Durability:
- 40000 cycles AC-3 440 V In/2 || 40000 cycles AC-3 440 V In
- Product Name:
- TeSys BV4
