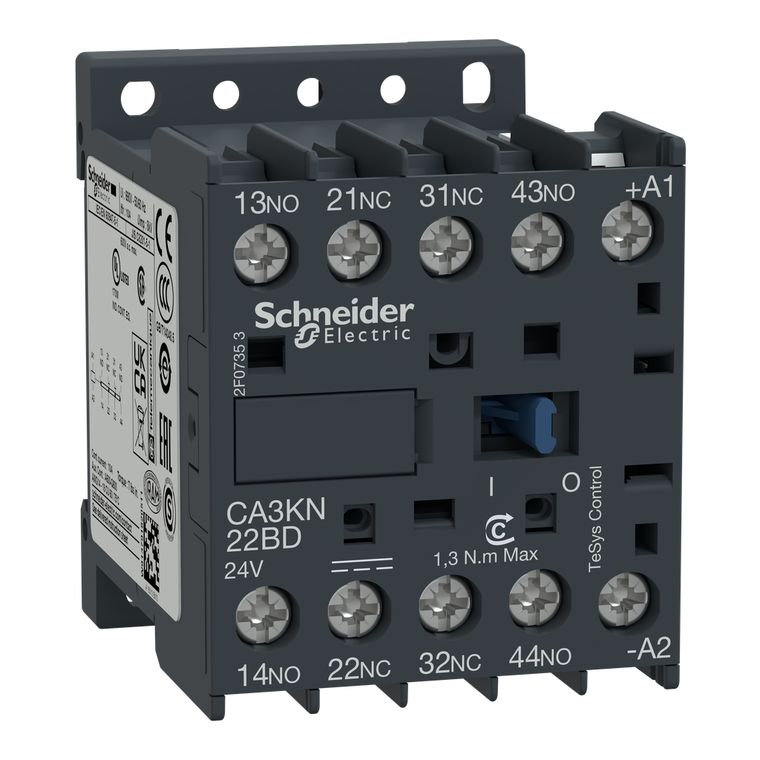

Schneider Electric CA3KN22BD K Control Relay 2No 2Nc 24Vdc Coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric CA3KN22BD K Control Relay 2No 2Nc 24Vdc Coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

CA3KN22BD

UPC:

3389110500172

MPN:

Condition:

New

Insulation Resistance:

> 10 MOhm

Hold-In Power Consumption In W:

3-3 W 20 °C

[Ue] Rated Operational Voltage:

<= 690 V <= 400 Hz

[Ith] Conventional Free Air Thermal Current:

10 A (at 50 °C)

Range:

TeSys

Circularity Profile:

ENVEOLI1503003EN

Product Or Component Type:

control relay

Associated Fuse Rating:

10 A gG conforming to IEC 60947 || 10 A gG conforming to VDE 0660

Eu Rohs Directive:

Compliant

Ip Degree Of Protection:

IP2X

Tightening Torque:

1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm

Irms Rated Making Capacity:

110 A IEC 60947

Control Circuit Voltage Limits:

operational: 0.8...1.15 Uc (at <50 °C) || drop-out: 0.1...0.75 Uc (at <50 °C)

Flame Retardance:

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Ambient Air Temperature For Operation:

-25-50 °C

Standards:

EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Width:

45 mm

Environmental Disclosure:

ENVPEP1503003EN

Inrush Power In W:

3-3 W 20 °C)

Minimum Switching Current:

5 mA

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Name:

TeSys CAK

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Immunity To Microbreaks:

2 ms

Warranty:

18 months

Connections - Terminals:

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexi

Operating Time:

10 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing || 15 ms coil de-energisation and NC closing || 25...35 ms coil energisation and NC opening

Device Short Name:

CA3K

Maximum Operating Rate:

10000 cyc/h

Net Weight:

0.225 kg

Pole Contact Composition:

2 NO + 2 NC

[Uc] Control Circuit Voltage:

24 V DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Heat Dissipation:

3-3 W

Mechanical Robustness:

vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Contactor Application:

control circuit

Operating Altitude:

6561.68 ft (2000 m) without derating

Protective Treatment:

TC IEC 60068

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mercury Free:

Yes

Minimum Switching Voltage:

17 V

Control Circuit Type:

DC standard

[Ui] Rated Insulation Voltage:

690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14

Depth:

57 mm

Reach Free Of Svhc:

Yes

Product Certifications:

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Mechanical Durability:

20 Mcycles

Non Overlap Distance:

0.5 mm

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Storage:

-50-80 °C

Height:

58 mm

Utilisation Category:

AC-15 || DC-13

Mounting Support:

rail || plate

Sustainable Offer Status:

Green Premium product
