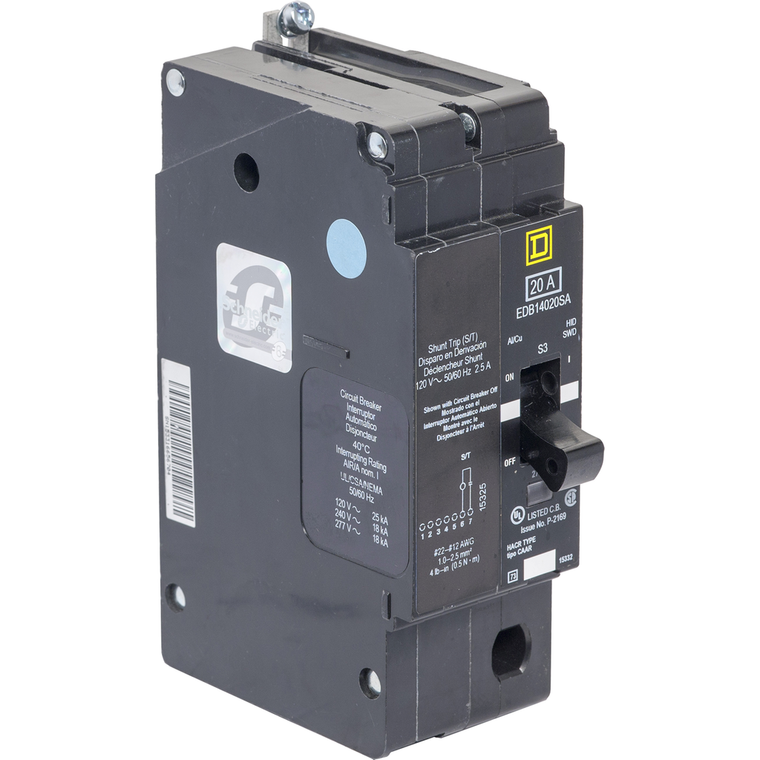

Schneider Electric EDB14020SA Miniature Circuit Breaker 277V 20A

(No reviews yet) Write a Review
SKU:
EDB14020SA
UPC:
785901335115
Condition:
New
Rohs Exemption Information:
Yes
Range Of Product:
125 A Frame EDB-EGB-EJB
Number Of Poles:
1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mounting Mode:
bolt-on
[Ue] Rated Operational Voltage:
277 V AC
Height:
5.66 in
Line Rated Current:
20 A
Trip Unit Rating:
875-875 A
Trip Unit Technology:
thermal-magnetic
Mercury Free:
Yes
Width:
1.96 in
Net Weight:
2 lb(US)
Awg Gauge:
AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
Holding Current:
270 A
Breaking Capacity Code:
D
Tightening Torque:
3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
Warranty:
18 months
Number Of Spaces Required:
2
Device Composition:
shunt trip
Local Signalling:
trip indicator
Depth:
4.05 in
Product Certifications:
cULus || IEC
Ambient Air Temperature For Operation:
40 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
EDB
Breaking Capacity:
18 kA 277 V AC || 18 kA 240 V AC || 25 kA 120 V AC || 18 kA 120/240 V AC
Product Or Component Type:
miniature circuit-breaker
Product Destination:
NF panelboard
Circuit Breaker Application:
HID rated || HACR rated || Switching Duty rated
Electrical Connection:
lugs aluminium
Number Of Spaces:
2
Protection Type:
short-circuit || overload
Module Type:
E-Frame
Catalog:
View
Datasheet:
View
$905.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes a shunt trip. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
