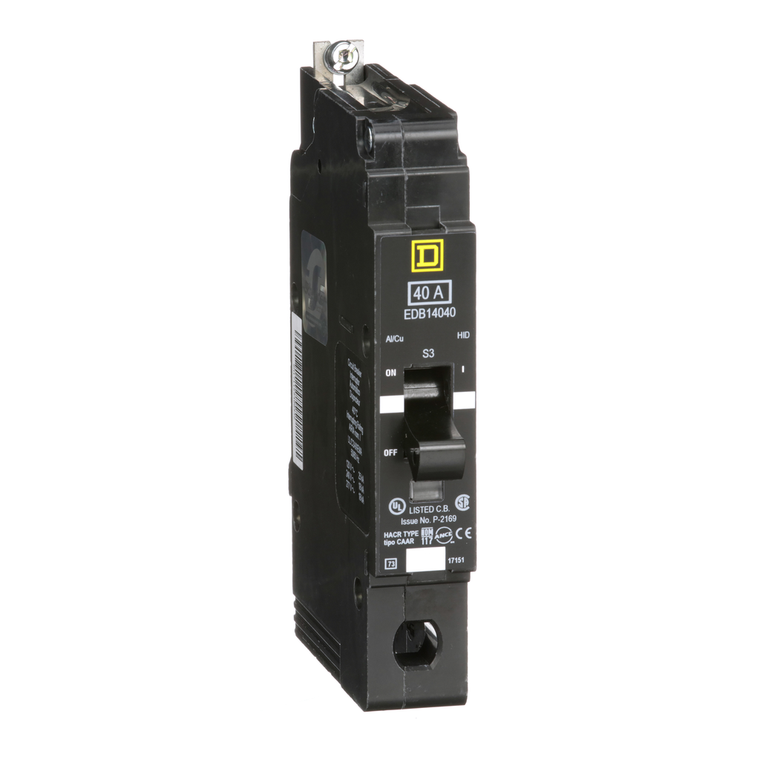

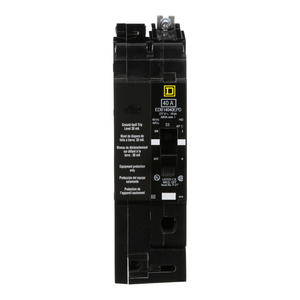

Schneider Electric EDB14040 Miniature Circuit Breaker 277V 40A

(No reviews yet) Write a Review
SKU:
EDB14040
UPC:
785901878957
Condition:
New
Height:
5.66 in
Ambient Air Temperature For Operation:
40 °C
Number Of Spaces:
1
Breaking Capacity:
18 kA 277 V AC || 18 kA 240 V AC || 25 kA 120 V AC || 18 kA 120/240 V AC
Warranty:
18 months
Mounting Mode:
bolt-on
Protection Type:
short-circuit || overload
Width:
0.98 in
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Spaces Required:
1
Product Destination:
NF panelboard
Electrical Connection:
lugs aluminium
Breaking Capacity Code:
D
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
4.05 in
Module Type:
E-Frame
Number Of Poles:
1
Device Short Name:
EDB
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Trip Unit Technology:
thermal-magnetic
Line Rated Current:
40 A
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Circuit Breaker Application:
HACR rated || HID rated
Product Certifications:
cULus || IEC
Product Or Component Type:
miniature circuit-breaker
Range Of Product:
125 A Frame EDB-EGB-EJB
Local Signalling:
trip indicator
Trip Unit Rating:
1800-1800 A
[Ue] Rated Operational Voltage:
277 V AC
Net Weight:
2 lb(US)
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Holding Current:
630 A
Brochure:
View
Catalog:
View
Datasheet:
View
$150.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This device is a 1 pole bolt-on breaker that is rated at 40 A at a system voltage of 277 VAC and the breaker is UL Listed as well as CSA rated. This E-Frame breaker has thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. This specific breaker is HID rated and HACR rated. The breaker has aluminium lugs which have a terminal lug rating of AWG 12...AWG 2/0 (aluminium) and AWG 14...AWG 2/0 (copper). This E-frame breaker breaking capacity has been tested a numerous voltages but the capacity is 25 kA at 120 VAC. This device has a hold current of 630 A which is the maxiumum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. The circuit breaker has a height of 5.66 in, width of 0.98 in and a depth of 4.05 in. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
