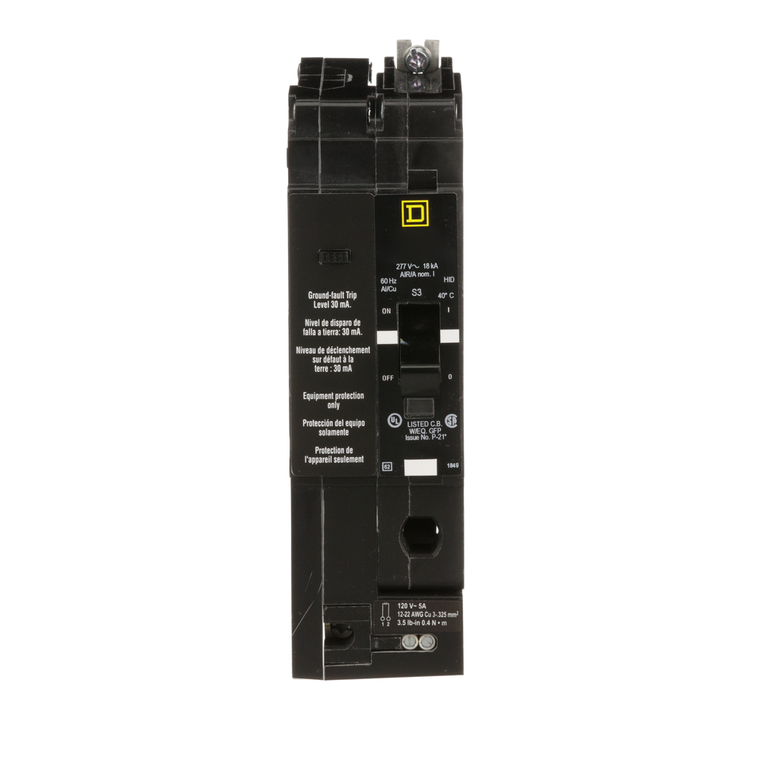

Schneider Electric EDB14040EPDBA Miniature Circuit Breaker 277V 40A
Schneider Electric
$1,388.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 40A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection and an alarm switch. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Breaking Capacity:
- 18 kA 277 V AC || 18 kA 240 V AC || 25 kA 120 V AC || 18 kA 120/240 V AC
- Trip Unit Rating:
- 1800-1800 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Breaking Capacity Code:
- D
- Local Signalling:
- trip indicator
- Mercury Free:
- Yes
- Circuit Breaker Application:
- HID rated || HACR rated
- Product Or Component Type:
- miniature circuit-breaker
- Height:
- 6.64 in
- Module Type:
- E-Frame
- Product Destination:
- NF panelboard
- [Ue] Rated Operational Voltage:
- 277 V AC
- Number Of Spaces:
- 2
- Number Of Spaces Required:
- 2
- Product Certifications:
- cULus || IEC
- Rohs Exemption Information:
- Yes
- Mounting Mode:
- bolt-on
- Earth-Leakage Sensitivity:
- 30 mA
- Protection Type:
- short-circuit || overload
- Line Rated Current:
- 40 A
- Trip Unit Technology:
- thermal-magnetic
- Electrical Connection:
- lugs aluminium
- Earth-Leakage Protection Class:
- class B
- Holding Current:
- 630 A
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Ambient Air Temperature For Operation:
- 40 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 1.96 in
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Awg Gauge:
- AWG 14...AWG 6 copper || AWG 12...AWG 4 aluminium
- Number Of Poles:
- 1
- Net Weight:
- 2 lb(US)
- Depth:
- 4.05 in
- Device Composition:
- alarm switch
- Device Short Name:
- EDB
