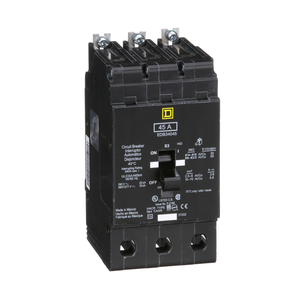

Schneider Electric EDB14045 Miniature Circuit Breaker 277V 45A
Schneider Electric
$150.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 45A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Local Signalling:
- trip indicator
- Trip Unit Technology:
- thermal-magnetic
- Product Or Component Type:
- miniature circuit-breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Spaces:
- 1
- Circuit Breaker Application:
- HACR rated || HID rated
- Trip Unit Rating:
- 1800-1800 A
- Height:
- 5.66 in
- Mounting Mode:
- bolt-on
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Product Destination:
- NF panelboard
- Breaking Capacity Code:
- D
- Device Short Name:
- EDB
- Electrical Connection:
- lugs aluminium
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- 40 °C
- Width:
- 0.98 in
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Line Rated Current:
- 45 A
- Number Of Spaces Required:
- 1
- Warranty:
- 18 months
- Number Of Poles:
- 1
- Depth:
- 4.05 in
- [Ue] Rated Operational Voltage:
- 277 V AC
- Product Certifications:
- cULus || IEC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Breaking Capacity:
- 18 kA 277 V AC || 18 kA 240 V AC || 25 kA 120 V AC || 18 kA 120/240 V AC
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Protection Type:
- overload || short-circuit
- Module Type:
- E-Frame
- Holding Current:
- 630 A
- Net Weight:
- 2 lb(US)
