Schneider Electric EDB34015LH Miniature Circuit Breaker 480Y/277V 15A
Schneider Electric
$803.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

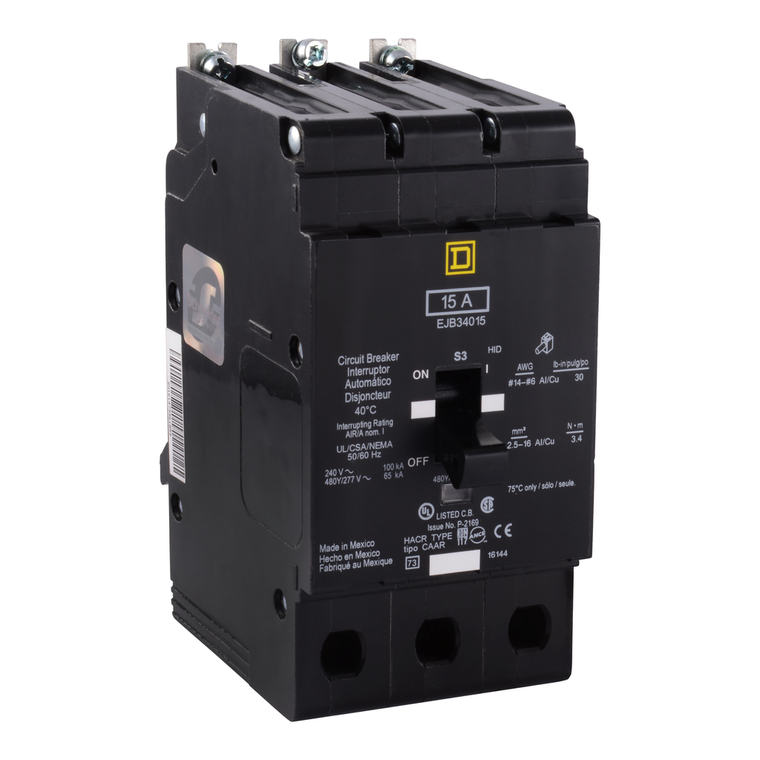

Schneider Electric EDB34015LH Miniature Circuit Breaker 480Y/277V 15A
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 15A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes high amp lugs. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Destination:
- NF panelboard
- Rohs Exemption Information:
- Yes
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Local Signalling:
- trip indicator
- Trip Unit Rating:
- 875-875 A
- Width:
- 2.94 in
- Electrical Connection:
- high ampere lugs aluminium
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Line Rated Current:
- 15 A
- Warranty:
- 18 months
- Number Of Poles:
- 3
- Depth:
- 4.05 in
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Number Of Spaces Required:
- 3
- [Ue] Rated Operational Voltage:
- 480Y/277 V AC
- Breaking Capacity:
- 18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
- Number Of Spaces:
- 3
- Product Certifications:
- cULus
- Mercury Free:
- Yes
- Product Or Component Type:
- miniature circuit-breaker
- Protection Type:
- overload || short-circuit
- Tightening Torque:
- 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
- Breaking Capacity Code:
- D
- Ambient Air Temperature For Operation:
- 40 °C
- Height:
- 5.66 in
- Circuit Breaker Application:
- HID rated || HACR rated
- Net Weight:
- 4 lb(US)
- Trip Unit Technology:
- thermal-magnetic
- Holding Current:
- 270 A
- Device Short Name:
- EDB
- Module Type:
- E-Frame
- Mounting Mode:
- bolt-on
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Catalog:
- View
- Datasheet:
- View
