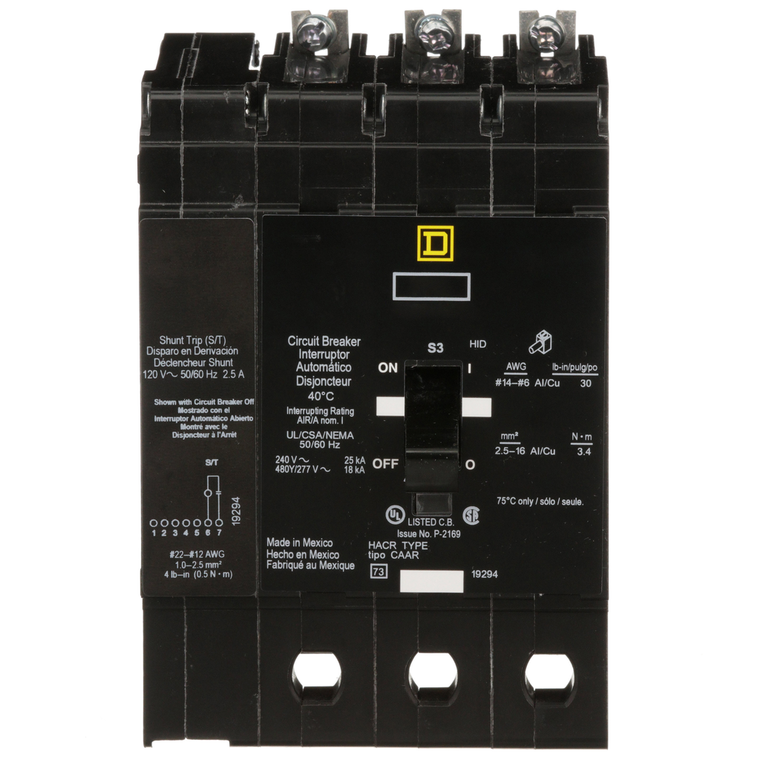

Schneider Electric EDB34020SA Miniature Circuit Breaker 480Y/277V 20A

(No reviews yet) Write a Review
SKU:
EDB34020SA
UPC:
785901112419
Condition:
New
Warranty:
18 months
Mounting Mode:
bolt-on
Ambient Air Temperature For Operation:
40 °C
Line Rated Current:
20 A
Product Certifications:
cULus
Trip Unit Technology:
thermal-magnetic
Height:
5.66 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ue] Rated Operational Voltage:
480Y/277 V AC
Circuit Breaker Application:
HID rated || HACR rated
Local Signalling:
trip indicator
Breaking Capacity Code:
D
Number Of Spaces:
4
Depth:
4.05 in
Awg Gauge:
AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
Tightening Torque:
3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
Protection Type:
short-circuit || overload
Trip Unit Rating:
875-875 A
Rohs Exemption Information:
Yes
Number Of Poles:
3
Product Or Component Type:
miniature circuit-breaker
Electrical Connection:
lugs aluminium
Module Type:
E-Frame
Mercury Free:
Yes
Product Destination:
NF panelboard
Width:
3.92 in
Holding Current:
270 A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Net Weight:
4 lb(US)
Number Of Spaces Required:
4
Device Short Name:
EDB
Device Composition:
shunt trip
Range Of Product:
125 A Frame EDB-EGB-EJB
Breaking Capacity:
18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
  • Schneider Electric EDB34020SA Miniature Circuit Breaker 480Y/277V 20A
  • Schneider Electric EDB34020SA Miniature Circuit Breaker 480Y/277V 20A
  • Schneider Electric EDB34020SA Miniature Circuit Breaker 480Y/277V 20A
$1,424.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes a shunt trip. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
