Schneider Electric EDB34025SA Miniature Circuit Breaker 480Y/277V 25A
Schneider Electric
$1,424.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

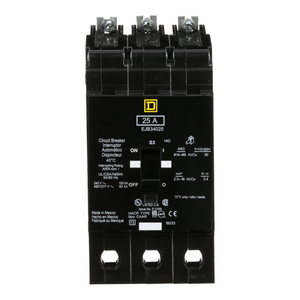

Schneider Electric EDB34025SA Miniature Circuit Breaker 480Y/277V 25A
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 25A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes a shunt trip. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Tightening Torque:
- 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
- Awg Gauge:
- AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
- Product Certifications:
- cULus
- Warranty:
- 18 months
- Number Of Spaces Required:
- 4
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- lugs aluminium
- Trip Unit Rating:
- 875-875 A
- Breaking Capacity:
- 18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
- Breaking Capacity Code:
- D
- Height:
- 5.66 in
- [Ue] Rated Operational Voltage:
- 480Y/277 V AC
- Ambient Air Temperature For Operation:
- 40 °C
- Line Rated Current:
- 25 A
- Circuit Breaker Application:
- HID rated || HACR rated
- Protection Type:
- overload || short-circuit
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Width:
- 3.92 in
- Number Of Spaces:
- 4
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Depth:
- 4.05 in
- Number Of Poles:
- 3
- Net Weight:
- 4 lb(US)
- Holding Current:
- 270 A
- Mounting Mode:
- bolt-on
- Module Type:
- E-Frame
- Local Signalling:
- trip indicator
- Device Short Name:
- EDB
- Device Composition:
- shunt trip
- Product Destination:
- NF panelboard
- Product Or Component Type:
- miniature circuit-breaker
- Trip Unit Technology:
- thermal-magnetic
- Catalog:
- View
- Datasheet:
- View
