Schneider Electric EDB34030AABA Miniature Circuit Breaker 480Y/277V 30A
Schneider Electric
$981.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

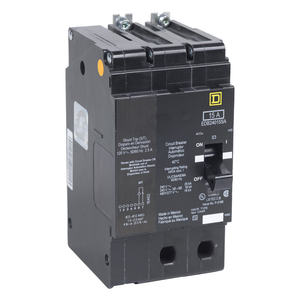

Schneider Electric EDB34030AABA Miniature Circuit Breaker 480Y/277V 30A
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 30A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes an auxiliary switch and an alarm switch. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Mercury Free:
- Yes
- Product Certifications:
- cULus
- Trip Unit Technology:
- thermal-magnetic
- Depth:
- 4.05 in
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
- Local Signalling:
- trip indicator
- Number Of Spaces Required:
- 4
- Product Destination:
- NF panelboard
- Ambient Air Temperature For Operation:
- 40 °C
- Module Type:
- E-Frame
- [Ue] Rated Operational Voltage:
- 480Y/277 V AC
- Warranty:
- 18 months
- Electrical Connection:
- lugs aluminium
- Width:
- 3.92 in
- Breaking Capacity Code:
- D
- Eu Rohs Directive:
- Compliant with Exemptions
- Net Weight:
- 4 lb(US)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Trip Unit Rating:
- 875-875 A
- Breaking Capacity:
- 18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Height:
- 5.66 in
- Device Composition:
- alarm switch || auxiliary switch
- Product Or Component Type:
- miniature circuit-breaker
- Holding Current:
- 270 A
- Circuit Breaker Application:
- HID rated || HACR rated
- Awg Gauge:
- AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
- Protection Type:
- overload || short-circuit
- Mounting Mode:
- bolt-on
- Number Of Poles:
- 3
- Device Short Name:
- EDB
- Number Of Spaces:
- 4
- Line Rated Current:
- 30 A
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Catalog:
- View
- Datasheet:
- View
