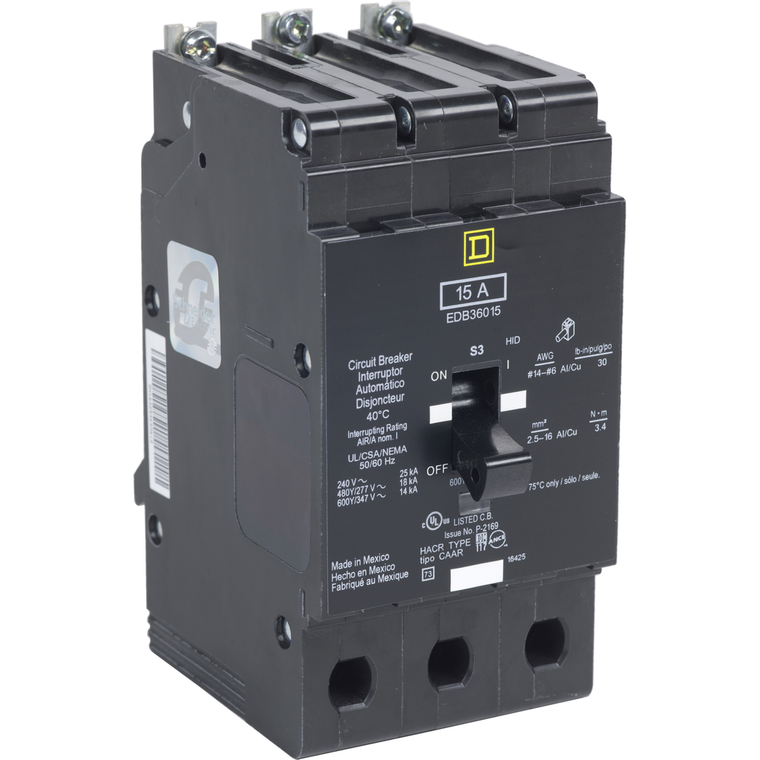

Schneider Electric EDB36025 Miniature Circuit Breaker 600V 25A
Schneider Electric
$669.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 25A, 3 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Number Of Spaces Required:
- 3
- Number Of Poles:
- 3
- Mercury Free:
- Yes
- Module Type:
- E-Frame
- Net Weight:
- 4 lb(US)
- Ambient Air Temperature For Operation:
- 40 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 2.94 in
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Product Destination:
- NF panelboard
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Short Name:
- EDB
- Trip Unit Technology:
- thermal-magnetic
- [Ue] Rated Operational Voltage:
- 600Y/347 V AC
- Tightening Torque:
- 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
- Local Signalling:
- trip indicator
- Circuit Breaker Application:
- HACR rated
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Breaking Capacity Code:
- D
- Product Or Component Type:
- circuit-breaker
- Number Of Spaces:
- 3
- Electrical Connection:
- lugs aluminium
- Holding Current:
- 270 A
- Trip Unit Rating:
- 875-875 A
- Height:
- 5.66 in
- Depth:
- 4.05 in
- Awg Gauge:
- AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Breaking Capacity:
- 14 kA 600Y/347 V AC
- Protection Type:
- overload || short-circuit
- Product Certifications:
- cULus
- Mounting Mode:
- bolt-on
- Line Rated Current:
- 25 A
