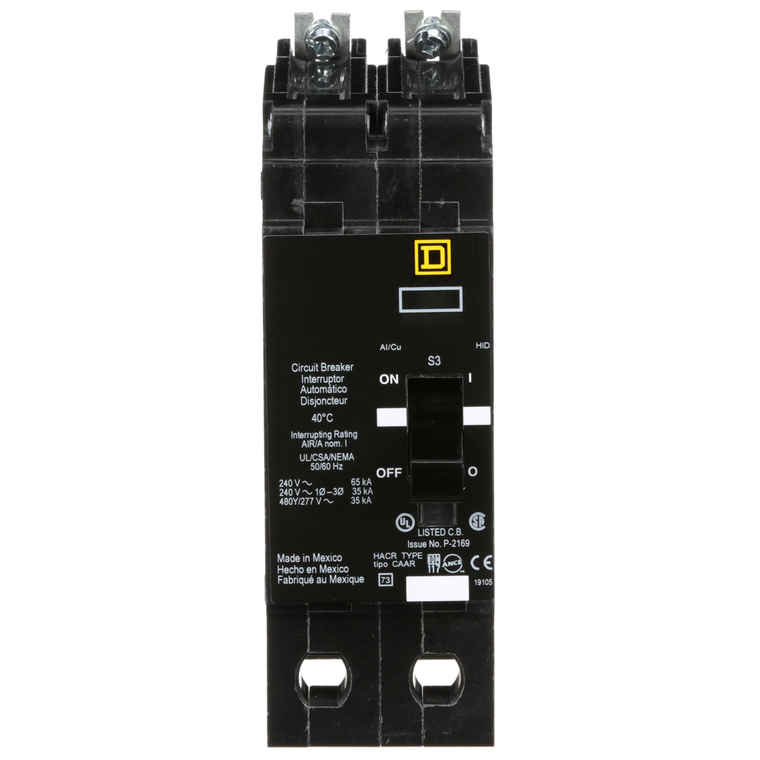

Schneider Electric EGB24045 Miniature Circuit Breaker 480Y/277V 45A

(No reviews yet) Write a Review
SKU:
EGB24045
UPC:
785901130321
Condition:
New
Product Destination:
NF panelboard
Range Of Product:
125 A Frame EDB-EGB-EJB
Electrical Connection:
lugs aluminium
Mercury Free:
Yes
Number Of Spaces:
2
Product Certifications:
cULus
Warranty:
18 months
Trip Unit Rating:
1800-1800 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Net Weight:
3 lb(US)
Rohs Exemption Information:
Yes
Product Or Component Type:
miniature circuit-breaker
Number Of Poles:
2
Ambient Air Temperature For Operation:
40 °C
[Ue] Rated Operational Voltage:
480Y/277 V AC
Number Of Spaces Required:
2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Protection Type:
overload || short-circuit
Breaking Capacity:
35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
Height:
5.66 in
Depth:
4.05 in
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Width:
1.96 in
Circuit Breaker Application:
HACR rated || HID rated
Trip Unit Technology:
thermal-magnetic
Holding Current:
630 A
Local Signalling:
trip indicator
Device Short Name:
EGB
Line Rated Current:
45 A
Breaking Capacity Code:
G
Module Type:
E-Frame
Mounting Mode:
bolt-on
  • Schneider Electric EGB24045 Miniature Circuit Breaker 480Y/277V 45A
  • Schneider Electric EGB24045 Miniature Circuit Breaker 480Y/277V 45A
  • Schneider Electric EGB24045 Miniature Circuit Breaker 480Y/277V 45A
$776.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 45A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
