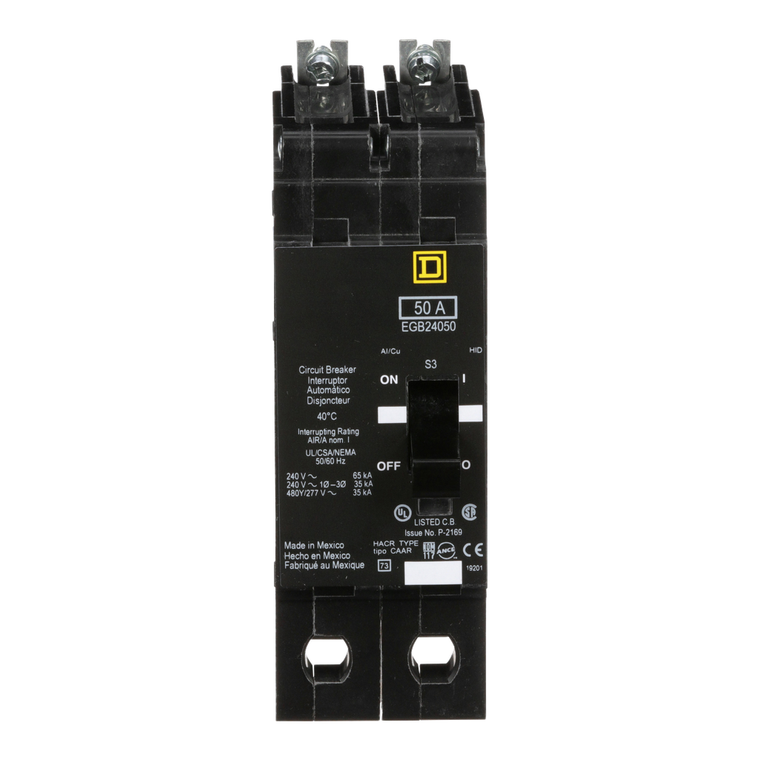

Schneider Electric EGB24050 Miniature Circuit Breaker 480Y/277V 50A

(No reviews yet) Write a Review
SKU:
EGB24050
UPC:
785901323259
Condition:
New
Holding Current:
630 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Short Name:
EGB
Circuit Breaker Application:
HID rated || HACR rated
Trip Unit Rating:
1800-1800 A
Local Signalling:
trip indicator
Height:
5.66 in
Number Of Poles:
2
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Trip Unit Technology:
thermal-magnetic
Protection Type:
short-circuit || overload
Module Type:
E-Frame
Number Of Spaces Required:
2
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Range Of Product:
125 A Frame EDB-EGB-EJB
[Ue] Rated Operational Voltage:
480Y/277 V AC
Product Or Component Type:
miniature circuit-breaker
Ambient Air Temperature For Operation:
40 °C
Warranty:
18 months
Depth:
4.05 in
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Product Certifications:
cULus
Number Of Spaces:
2
Electrical Connection:
lugs aluminium
Line Rated Current:
50 A
Breaking Capacity Code:
G
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
bolt-on
Net Weight:
3 lb(US)
Breaking Capacity:
35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
Width:
1.96 in
Product Destination:
NF panelboard
  • Schneider Electric EGB24050 Miniature Circuit Breaker 480Y/277V 50A
  • Schneider Electric EGB24050 Miniature Circuit Breaker 480Y/277V 50A
  • Schneider Electric EGB24050 Miniature Circuit Breaker 480Y/277V 50A
$776.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 50A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
