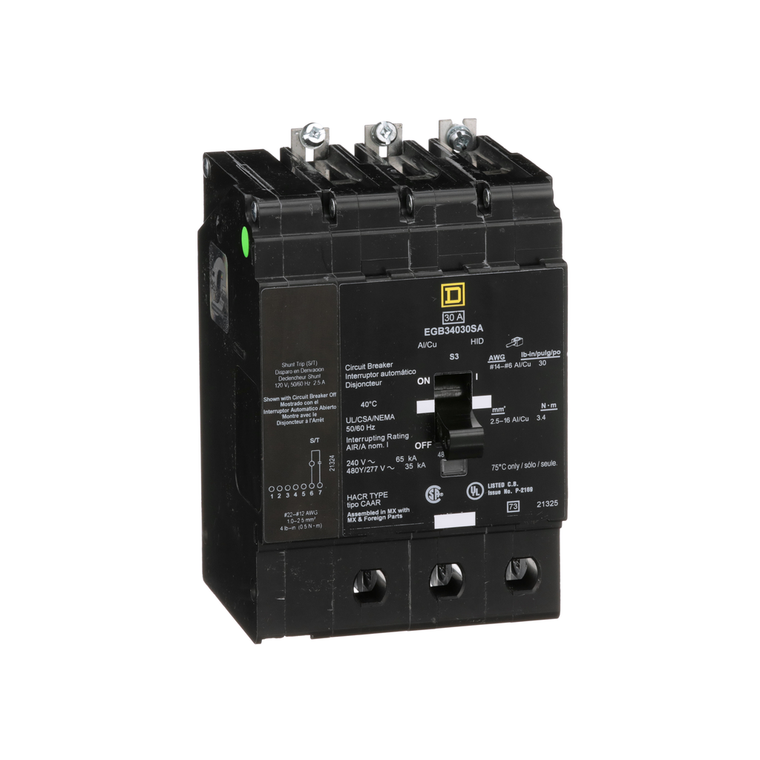

Schneider Electric EGB34030SA Miniature Circuit Breaker 480Y/277V 30A

(No reviews yet) Write a Review

Write a Review

Schneider Electric EGB34030SA Miniature Circuit Breaker 480Y/277V 30A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

EGB34030SA

UPC:

7.85901E+11

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Local Signalling:

trip indicator

Tightening Torque:

3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)

Product Destination:

NF panelboard

Rohs Exemption Information:

Yes

Product Or Component Type:

miniature circuit-breaker

Net Weight:

4 lb(US)

Ambient Air Temperature For Operation:

40 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Spaces:

4

Trip Unit Technology:

thermal-magnetic

Depth:

4.05 in

Breaking Capacity:

35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC

Awg Gauge:

AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper

Width:

3.92 in

Mercury Free:

Yes

Device Short Name:

EGB

Warranty:

18 months

Device Composition:

shunt trip

Module Type:

E-Frame

Product Certifications:

cULus

Protection Type:

short-circuit || overload

Mounting Mode:

bolt-on

Breaking Capacity Code:

G

Number Of Spaces Required:

4

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Electrical Connection:

lugs aluminium

Height:

5.66 in

Number Of Poles:

3

Line Rated Current:

30 A

Holding Current:

270 A

Trip Unit Rating:

875-875 A

Circuit Breaker Application:

HACR rated || HID rated

[Ue] Rated Operational Voltage:

480Y/277 V AC

Range Of Product:

125 A Frame EDB-EGB-EJB
