Schneider Electric EGB34070 Miniature Circuit Breaker 480Y/277V 70A
Schneider Electric
$1,292.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

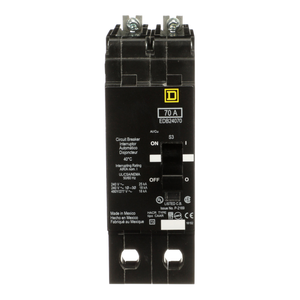

Schneider Electric EGB34070 Miniature Circuit Breaker 480Y/277V 70A
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This device is a 3 pole bolt-on breaker that is rated at 70 A at a system voltage of 480Y/277 VAC and the breaker is UL Listed as well as CSA rated. This E-Frame breaker has thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. This specific breaker is HACR rated and HID rated. The breaker has aluminium lugs which have a terminal lug rating of AWG 12...AWG 2/0 (aluminium) and AWG 14...AWG 2/0 (copper). This E-frame breaker breaking capacity has been tested a numerous voltages but at two voltages the capacity is 35 kA at 480Y/277 VAC and 65 kA at 120/240 VAC. This device has a hold current of 630 A which is the maxiumum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. The circuit breaker has a height of 5.66 in, width of 2.94 in and a depth of 4.05 in. This breaker was calibrated for 40 degrees C. HACR rated.
- Trip Unit Rating:
- 1800-1800 A
- Product Or Component Type:
- miniature circuit-breaker
- Breaking Capacity:
- 35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
- Warranty:
- 18 months
- Number Of Spaces Required:
- 3
- Ambient Air Temperature For Operation:
- 40 °C
- Breaking Capacity Code:
- G
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Line Rated Current:
- 70 A
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Destination:
- NF panelboard
- Product Certifications:
- cULus
- Height:
- 5.66 in
- Trip Unit Technology:
- thermal-magnetic
- Depth:
- 4.05 in
- Protection Type:
- short-circuit || overload
- Number Of Spaces:
- 3
- Mounting Mode:
- bolt-on
- Width:
- 2.94 in
- Electrical Connection:
- lugs aluminium
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Number Of Poles:
- 3
- Module Type:
- E-Frame
- Device Short Name:
- EGB
- Holding Current:
- 630 A
- [Ue] Rated Operational Voltage:
- 480Y/277 V AC
- Net Weight:
- 4 lb(US)
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- trip indicator
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
