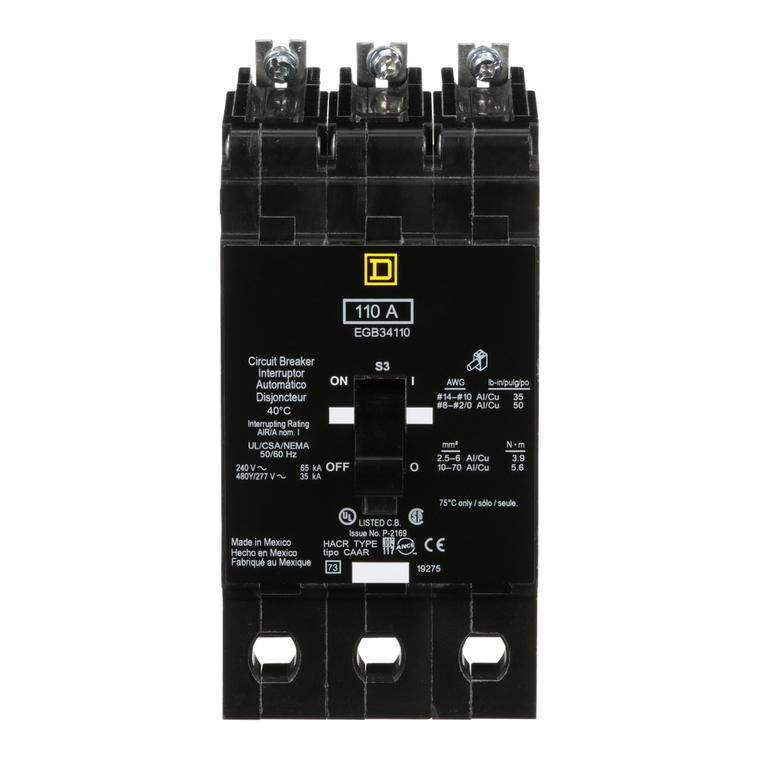

Schneider Electric EGB34110 Miniature Circuit Breaker 480Y/277V 110A

(No reviews yet) Write a Review
SKU:
EGB34110
UPC:
785901130482
Condition:
New
Protection Type:
short-circuit || overload
Electrical Connection:
lugs aluminium
[Ue] Rated Operational Voltage:
480Y/277 V AC
Holding Current:
1000 A
Mercury Free:
Yes
Module Type:
E-Frame
Breaking Capacity Code:
G
Warranty:
18 months
Ambient Air Temperature For Operation:
40 °C
Product Destination:
NF panelboard
Mounting Mode:
bolt-on
Product Or Component Type:
miniature circuit-breaker
Breaking Capacity:
35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Trip Unit Rating:
2300-2300 A
Trip Unit Technology:
thermal-magnetic
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
cULus
Height:
5.66 in
Circuit Breaker Application:
HACR rated
Line Rated Current:
110 A
Width:
2.94 in
Range Of Product:
125 A Frame EDB-EGB-EJB
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Poles:
3
Device Short Name:
EGB
Depth:
4.05 in
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Rohs Exemption Information:
Yes
Local Signalling:
trip indicator
Net Weight:
4 lb(US)
Number Of Spaces Required:
3
Number Of Spaces:
3
  • Schneider Electric EGB34110 Miniature Circuit Breaker 480Y/277V 110A
  • Schneider Electric EGB34110 Miniature Circuit Breaker 480Y/277V 110A
  • Schneider Electric EGB34110 Miniature Circuit Breaker 480Y/277V 110A
$3,216.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 110A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.
