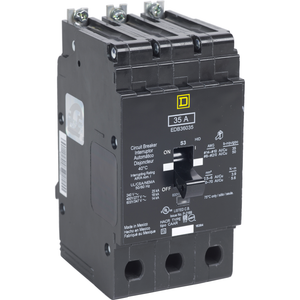

Schneider Electric EGB36090 Miniature Circuit Breaker 600V 90A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 90A, 3 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.
- Rohs Exemption Information:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 90 A
- Breaking Capacity:
- 18 kA 600Y/347 V AC
- Breaking Capacity Code:
- G
- Number Of Poles:
- 3
- Depth:
- 4.05 in
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Width:
- 2.94 in
- Product Or Component Type:
- circuit-breaker
- Circuit Breaker Application:
- HACR rated
- Electrical Connection:
- lugs aluminium
- Ambient Air Temperature For Operation:
- 40 °C
- Holding Current:
- 1000 A
- [Ue] Rated Operational Voltage:
- 600Y/347 V AC
- Number Of Spaces:
- 3
- Mounting Mode:
- bolt-on
- Module Type:
- E-Frame
- Product Destination:
- NF panelboard
- Local Signalling:
- trip indicator
- Device Short Name:
- EGB
- Trip Unit Rating:
- 2300-2300 A
- Height:
- 5.66 in
- Mercury Free:
- Yes
- Net Weight:
- 4 lb(US)
- Protection Type:
- overload || short-circuit
- Number Of Spaces Required:
- 3
- Product Certifications:
- cULus
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
