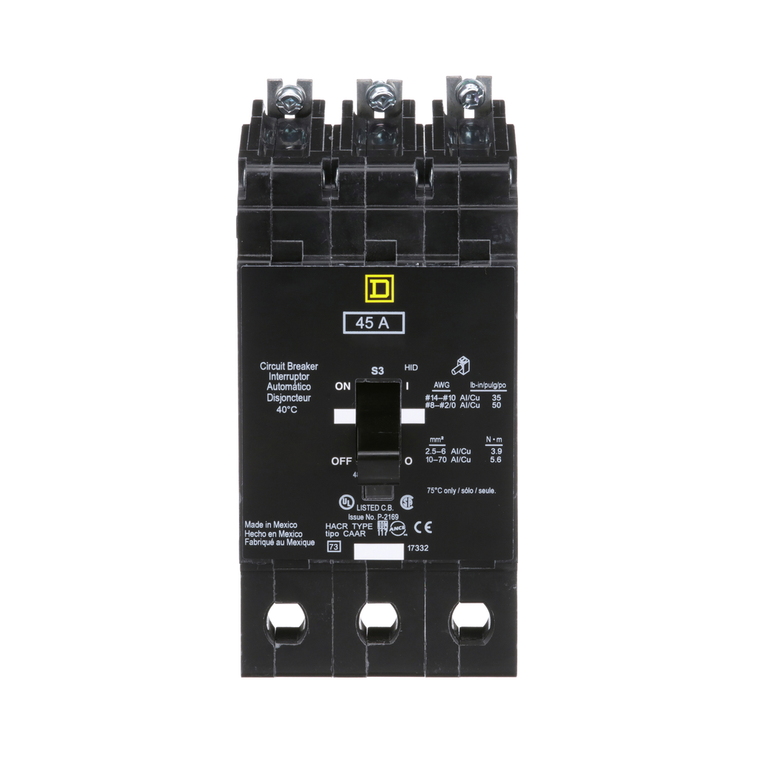

Schneider Electric EJB34045 Miniature Circuit Breaker 480Y/277V 45A

Schneider Electric EJB34045 Miniature Circuit Breaker 480Y/277V 45A

Schneider Electric
SKU:
EJB34045
|
UPC:
785901130628
Availability:
Contact us to confirm availability and lead times.
$1,358.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 45A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
EJB
Holding Current:
630 A
Number Of Poles:
3
Electrical Connection:
lugs aluminium
Circuit Breaker Application:
HACR rated || HID rated
[Ue] Rated Operational Voltage:
480Y/277 V AC
Breaking Capacity:
65 kA 277 V AC || 100 kA 240 V AC || 65 kA 480Y/277 V AC || 100 kA 120 V AC || 100 kA 120/240 V AC
Warranty:
18 months
Line Rated Current:
45 A
Net Weight:
4 lb(US)
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications:
cULus
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Mounting Mode:
bolt-on
Height:
5.66 in
Local Signalling:
trip indicator
Trip Unit Rating:
1800-1800 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Module Type:
E-Frame
Rohs Exemption Information:
Yes
Width:
2.94 in
Protection Type:
short-circuit || overload
Product Or Component Type:
miniature circuit-breaker
Product Destination:
NF panelboard
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Breaking Capacity Code:
J
Number Of Spaces:
3
Number Of Spaces Required:
3
Depth:
4.05 in
Ambient Air Temperature For Operation:
40 °C
Trip Unit Technology:
thermal-magnetic
Range Of Product:
125 A Frame EDB-EGB-EJB
