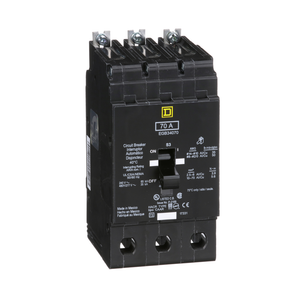

Schneider Electric EJB34070SA Miniature Circuit Breaker 480Y/277V 70A

(No reviews yet) Write a Review

Write a Review

Schneider Electric EJB34070SA Miniature Circuit Breaker 480Y/277V 70A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

EJB34070SA

UPC:

785901523048

MPN:

Condition:

New

Number Of Poles:

3

Trip Unit Rating:

1800-1800 A

Range Of Product:

125 A Frame EDB-EGB-EJB

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Holding Current:

630 A

Product Destination:

NF panelboard

Height:

5.66 in

Trip Unit Technology:

thermal-magnetic

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Net Weight:

4 lb(US)

Device Short Name:

EJB

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Electrical Connection:

lugs aluminium

Module Type:

E-Frame

Protection Type:

short-circuit || overload

Mounting Mode:

bolt-on

Product Certifications:

cULus

Warranty:

18 months

Ambient Air Temperature For Operation:

40 °C

Number Of Spaces Required:

4

Device Composition:

shunt trip

[Ue] Rated Operational Voltage:

480Y/277 V AC

Breaking Capacity:

65 kA 277 V AC || 100 kA 240 V AC || 65 kA 480Y/277 V AC || 100 kA 120 V AC || 100 kA 120/240 V AC

Width:

3.92 in

Product Or Component Type:

miniature circuit-breaker

Line Rated Current:

70 A

Awg Gauge:

AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper

Number Of Spaces:

4

Local Signalling:

trip indicator

Breaking Capacity Code:

J

Tightening Torque:

3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circuit Breaker Application:

HACR rated

Depth:

4.05 in
