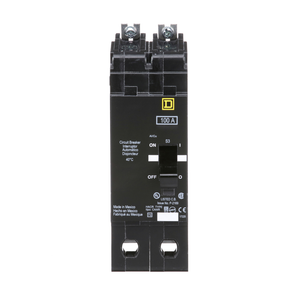

Schneider Electric EJB34100 Miniature Circuit Breaker 480Y/277V 100A

(No reviews yet) Write a Review

Write a Review

Schneider Electric EJB34100 Miniature Circuit Breaker 480Y/277V 100A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

EJB34100

UPC:

785901090854

MPN:

Condition:

New

Breaking Capacity Code:

J

Width:

2.94 in

Local Signalling:

trip indicator

[Ue] Rated Operational Voltage:

480Y/277 V AC

Line Rated Current:

100 A

Number Of Spaces:

3

Net Weight:

4 lb(US)

Range Of Product:

125 A Frame EDB-EGB-EJB

Module Type:

E-Frame

Breaking Capacity:

65 kA 277 V AC || 100 kA 240 V AC || 65 kA 480Y/277 V AC || 100 kA 120 V AC || 100 kA 120/240 V AC

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Awg Gauge:

AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper

Height:

5.66 in

Warranty:

18 months

Number Of Poles:

3

Device Short Name:

EJB

Trip Unit Technology:

thermal-magnetic

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Tightening Torque:

3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mounting Mode:

bolt-on

Trip Unit Rating:

2300-2300 A

Rohs Exemption Information:

Yes

Protection Type:

short-circuit || overload

Depth:

4.05 in

Ambient Air Temperature For Operation:

40 °C

Number Of Spaces Required:

3

Electrical Connection:

lugs aluminium

Holding Current:

1000 A

Product Or Component Type:

miniature circuit-breaker

Circuit Breaker Application:

HACR rated

Product Certifications:

cULus

Product Destination:

NF panelboard
