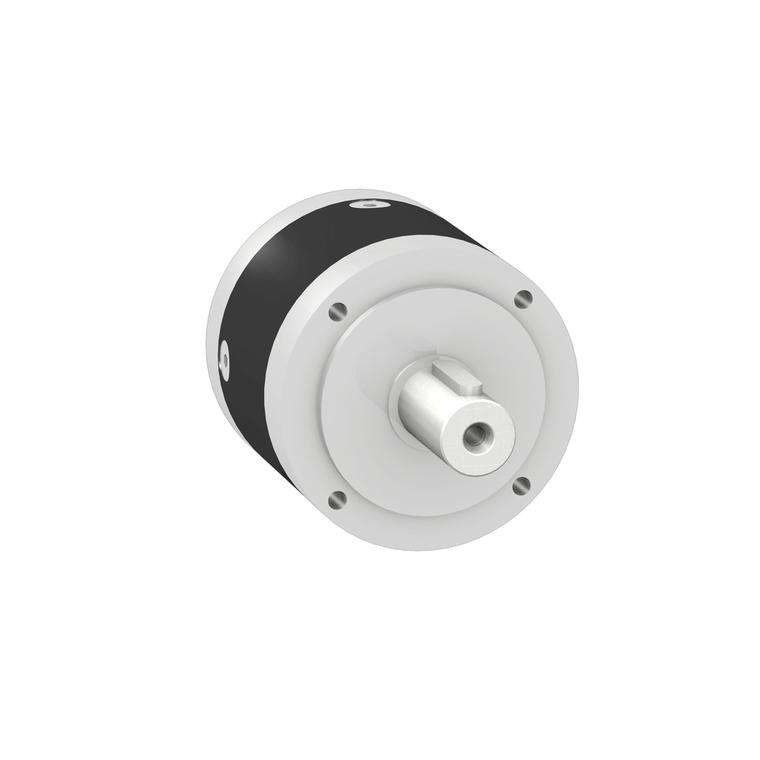

Schneider Electric GBX060003K Gearbox Ple60 I=3
This product is part of the Lexium SD3 range, an offer of planetary gearboxes for stepper motors. This planetary gearbox has straight teeth, lubricated for life. The external diameter of gearbox is 60mm. It is a gearbox with a reduction ratio of 3 1, maximum axial force of 450N at 100RPM and continuous output torque of 28Nm at 100RPM at 30°C. It offers service life of about 30,000 hours at 100RPM at 30°C. It is an IP54 rated product. The housing is made of black anodized aluminum. It weighs 0.9kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This gearbox is compatible with Lexium ILA, Lexium 28, Lexium 62 ILM, Lexium 62, Lexium 32, Lexium ILS, Lexium 52 and Lexium SD3 motors and drives. It can be mounted in any position. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
- Maximum Radial Force Fr:
- 340 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
- Mounting Position:
- any position
- Device Short Name:
- GBX
- Continuous Output Torque:
- 28 N.m 100 rpm 30 °C
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP111245EN
- Ip Degree Of Protection:
- shaft output IP54
- Service Life In Hours:
- 30000 h 100 rpm 30 °C
- Net Weight:
- 0.9 kg
- Ambient Air Temperature For Operation:
- -25-90 °C
- Maximum Output Torque:
- 45 N.m 100 rpm 30 °C
- Product Or Component Type:
- planetary gearbox
- Housing Material:
- black anodized aluminium
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Efficiency:
- 0.96
- Sustainable Offer Status:
- Green Premium product
- Housing Colour:
- black
- Gearbox External Diameter:
- 60 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Range Compatibility:
- Lexium ILA || Lexium 28 || Lexium 62 ILM || Lexium 62 || Lexium 32 || Lexium ILS || Lexium 52 || Lexium SD3
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Torsional Rigidity:
- 2.3 N.m/arcmin
- Maximum Torsional Backlash:
- 10 arc.min
- Shaft Moment Of Inertia:
- 0.135 kg.cm²
- Maximum Axial Force Fa:
- 450 N 100 rpm, during 30000 hour at 30°C
- Reduction Ratio:
- 0.125694444444444
- Additional Information:
- lubricated for life
- Internal Diameter:
- 14.0 mm
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Gear Box Type:
- straight teeth
- Product Compatibility:
- BMH 70 mm, 1 || BMH 70 mm, 2 || BMH 70 mm, 3 || BSH 55 mm, 1 || BSH 55 mm, 2 || BSH 55 mm, 3 || BSH 70 mm, 1 || BSH 70 mm, 2 || BSH 70 mm, 3 || BRS3 || ILA 57 mm, 1 || ILA 57 mm, 2 || ILS 57 mm, 1 || ILS 57 mm, 2 || ILS 57 mm, 3 || BCH2 60 mm, 1 || B
- Noise Level:
- 58 dB 1 m, no-load
- Shaft Material:
- C 45
- Circularity Profile:
- N/A
