Schneider Electric

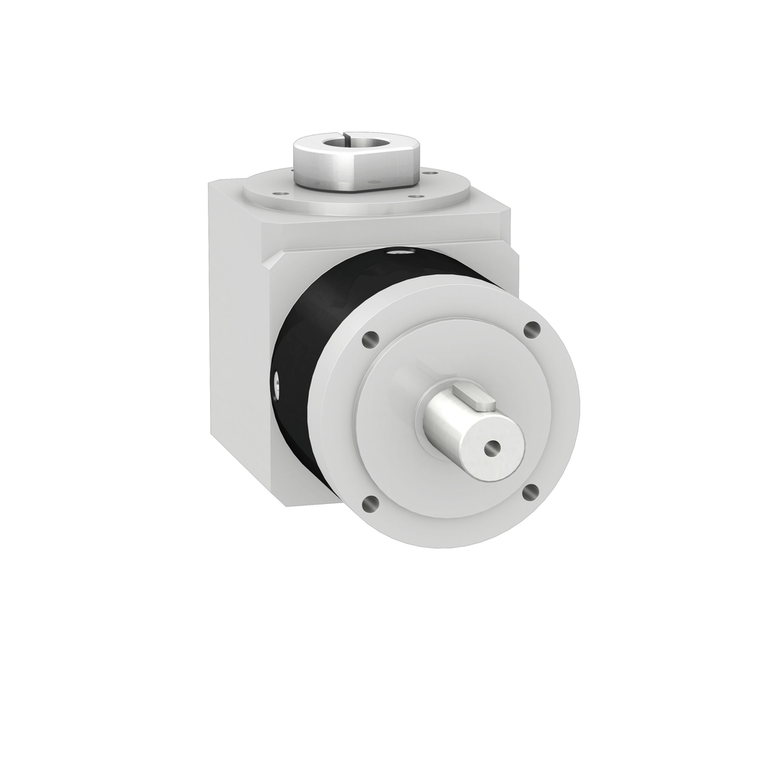

Schneider Electric GBY060003K Gearbox Wple60 I=3

SKU:

GBY060003K

UPC:

3.60648E+12

MPN:

Condition:

New

Product Compatibility:

BMH 70 mm, 1 || BMH 70 mm, 2 || BSH 55 mm, 1 || BSH 55 mm, 2 || BSH 55 mm, 3 || BSH 70 mm, 1 || BSH 70 mm, 2 || BRS3 || ILA 57 mm, 1 || ILA 57 mm, 2 || ILS 57 mm, 1 || ILS 57 mm, 2 || ILS 57 mm, 3 || SH3 || MH3 || ILM

Torsional Rigidity:

2.3 N.m/arcmin

Product Or Component Type:

angular planetary gearbox

Housing Material:

black anodized aluminium

Continuous Output Torque:

14 N.m 100 rpm 30 °C

Device Short Name:

GBY

Maximum Torsional Backlash:

16 arc.min

Warranty:

18 months

Housing Colour:

black

Ip Degree Of Protection:

shaft output IP54

Mercury Free:

Yes

Internal Diameter:

14.0 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Noise Level:

70 dB 1 m, no-load

Environmental Disclosure:

ENVPEP111245EN

Maximum Radial Force Fr:

340 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C

Additional Information:

lubricated for life

Service Life In Hours:

30000 h 100 rpm 30 °C

Maximum Output Torque:

22 N.m 100 rpm 30 °C

Reduction Ratio:

0.125694444444444

Shaft Material:

C 45

Circularity Profile:

N/A

Net Weight:

1.7 kg

Gearbox External Diameter:

60 mm

Maximum Axial Force Fa:

450 N 100 rpm, during 30000 hour at 30°C

Range Compatibility:

Lexium 32 || Lexium 52 || Lexium ILS || Lexium ILA || Lexium 62 ILM || Lexium SD3 || Lexium 62

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Mounting Position:

any position

Rohs Exemption Information:

Yes

Gear Box Type:

straight teeth

Ambient Air Temperature For Operation:

-25-90 °C

Efficiency:

0.94

Pvc Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shaft Moment Of Inertia:

0.246 kg.cm²
