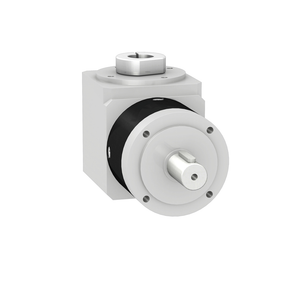

Schneider Electric GBY080003K Gearbox Wple80 I=3

SKU:

GBY080003K

UPC:

3.60648E+12

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP111245EN

Net Weight:

4.4 kg

Housing Colour:

black

Device Short Name:

GBY

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Gear Box Type:

straight teeth

Noise Level:

73 dB 1 m, no-load

Product Or Component Type:

angular planetary gearbox

Ambient Air Temperature For Operation:

-25-90 °C

Maximum Axial Force Fa:

1200 N 100 rpm, during 30000 hour at 30°C

Additional Information:

lubricated for life

Service Life In Hours:

30000 h 100 rpm 30 °C

Reduction Ratio:

0.125694444444444

Efficiency:

0.94

Shaft Moment Of Inertia:

1.189 kg.cm²

Product Compatibility:

BMI 70 mm, 2 || BMI 70 mm, 3 || BMH 70 mm, 3 || BSH 70 mm, 3 || BMH 100 mm, 1 || BMH 100 mm, 2 || BSH 100 mm, 1 || BSH 100 mm, 2 || BRS3 || ILS 85 mm, 1 || ILS 85 mm, 2 || ILS 85 mm, 3 || SH3 || MH3 || ILM

Pvc Free:

Yes

Sustainable Offer Status:

Green Premium product

Range Compatibility:

Lexium 52 || Lexium 62 ILM || Lexium SD3 || Lexium 32 || Lexium ILS || Lexium 62

Circularity Profile:

N/A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Output Torque:

64 N.m 100 rpm 30 °C

Ip Degree Of Protection:

shaft output IP54

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Torsional Rigidity:

6 N.m/arcmin

Gearbox External Diameter:

80 mm

Mounting Position:

any position

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Housing Material:

black anodized aluminium

Shaft Material:

C 45

Maximum Radial Force Fr:

650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C

Maximum Torsional Backlash:

13 arc.min

Warranty:

18 months

Internal Diameter:

19.0 mm

Continuous Output Torque:

40 N.m 100 rpm 30 °C
