Schneider Electric

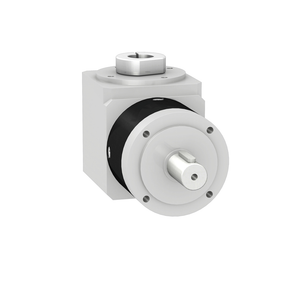

Schneider Electric GBY080012K Gearbox Wple80 I=12

SKU:

GBY080012K

UPC:

3606480388750

MPN:

Condition:

New

Housing Material:

black anodized aluminium

Torsional Rigidity:

6.5 N.m/arcmin

Shaft Moment Of Inertia:

1.139 kg.cm²

Maximum Axial Force Fa:

1200 N 100 rpm, during 30000 hour at 30°C

Pvc Free:

Yes

Rohs Exemption Information:

Yes

Gearbox External Diameter:

80 mm

Maximum Torsional Backlash:

15 arc.min

Environmental Disclosure:

ENVPEP111245EN

Housing Colour:

black

Efficiency:

0.92

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

shaft output IP54

Device Short Name:

GBY

Maximum Radial Force Fr:

650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C

Additional Information:

lubricated for life

Shaft Material:

C 45

Range Compatibility:

Lexium ILS || Lexium 62 ILM || Lexium 62 || Lexium 32 || Lexium 32i || Lexium 52 || Lexium SD3

Ambient Air Temperature For Operation:

-25-90 °C

Warranty:

18 months

Net Weight:

5 kg

Continuous Output Torque:

120 N.m 100 rpm 30 °C

Mounting Position:

any position

Mercury Free:

Yes

Noise Level:

73 dB 1 m, no-load

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Maximum Output Torque:

192 N.m 100 rpm 30 °C

Product Or Component Type:

angular planetary gearbox

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Gear Box Type:

straight teeth

Circularity Profile:

N/A

Internal Diameter:

19.0 mm

Reduction Ratio:

0.500694444444444

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Service Life In Hours:

30000 h 100 rpm 30 °C

Product Compatibility:

BMI 70 mm, 2 || BMI 70 mm, 3 || BMH 70 mm, 2 || BMH 70 mm, 3 || BSH 70 mm, 2 || BSH 70 mm, 3 || BMH 100 mm, 1 || BSH 100 mm, 1 || BRS3 || ILS 85 mm, 1 || ILS 85 mm, 2 || ILS 85 mm, 3 || SH3 || MH3 || ILM
