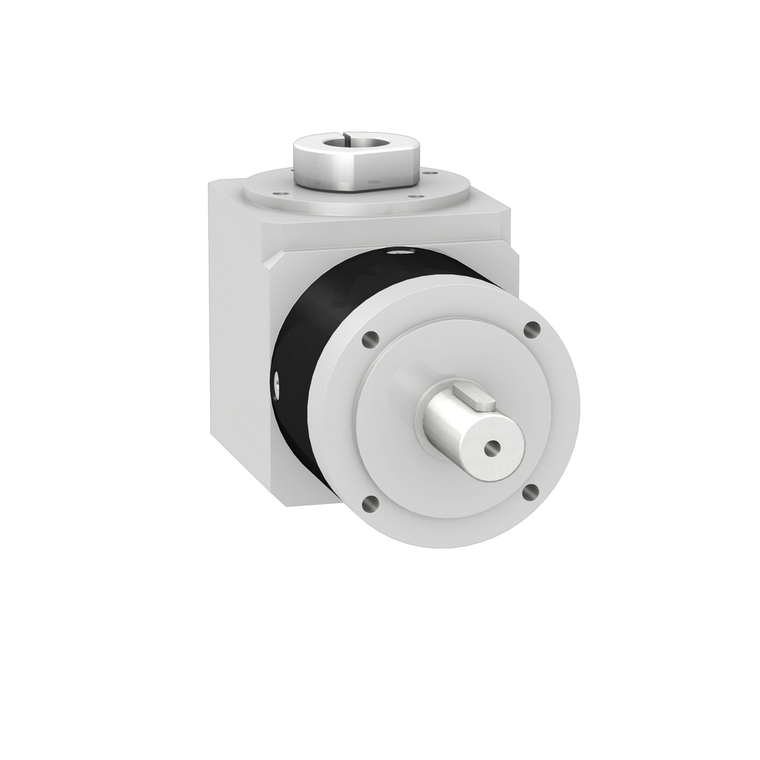

Schneider Electric GBY080025K Angular Gear Box 80Mm, Ratio 25

SKU:

GBY080025K

UPC:

3.60649E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Continuous Output Torque:

110 N.m 100 rpm 30 °C

Maximum Torsional Backlash:

15 arc.min

Ambient Air Temperature For Operation:

-25-90 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Housing Material:

black anodized aluminium

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

angular planetary gearbox

Pvc Free:

Yes

Additional Information:

lubricated for life

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Position:

any position

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Maximum Radial Force Fr:

650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C

Housing Colour:

black

Ip Degree Of Protection:

shaft output IP54

Internal Diameter:

19.0 mm

Efficiency:

0.92

Shaft Material:

C 45

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

GBY

Reduction Ratio:

1.04236111111111

Shaft Moment Of Inertia:

0.859 kg.cm²

Net Weight:

5 kg

Maximum Output Torque:

176 N.m 100 rpm 30 °C

Mercury Free:

Yes

Gear Box Type:

straight teeth

Product Compatibility:

BMH 70 mm, 1 || BMH 70 mm, 2 || BMH 70 mm, 3 || BSH 70 mm, 1 || BSH 70 mm, 2 || BSH 70 mm, 3 || SH3 || MH3 || ILM

Maximum Axial Force Fa:

900 N 100 rpm, during 30000 hour at 30°C

Torsional Rigidity:

6.5 N.m/arcmin

Circularity Profile:

N/A

Gearbox External Diameter:

80 mm

Range Compatibility:

Lexium 32 || Lexium 62 ILM || Lexium 52 || Lexium 62

Environmental Disclosure:

ENVPEP111245EN

Noise Level:

73 dB 1 m, no-load

Service Life In Hours:

30000 h 100 rpm 30 °C
