Schneider Electric

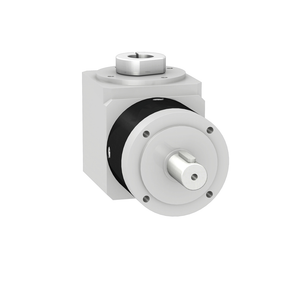

Schneider Electric GBY120040K Gearbox Wple120 I=40

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric GBY120040K Gearbox Wple120 I=40

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GBY120040K

UPC:

3606480388842

MPN:

Condition:

New

Range Compatibility:

Lexium 52 || Lexium 32 || Lexium 32i || Lexium 62 || Lexium 62 ILM

Service Life In Hours:

30000 h 100 rpm 30 °C

Warranty:

18 months

Ambient Air Temperature For Operation:

-25-90 °C

Mounting Position:

any position

Ip Degree Of Protection:

shaft output IP54

Circularity Profile:

N/A

Maximum Torsional Backlash:

13 arc.min

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Radial Force Fr:

1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C

Maximum Axial Force Fa:

2100 N 100 rpm, during 30000 hour at 30°C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Output Torque:

368 N.m 100 rpm 30 °C

Environmental Disclosure:

ENVPEP111245EN

Sustainable Offer Status:

Green Premium product

Device Short Name:

GBY

Shaft Material:

C 45

Reduction Ratio:

1.66736111111111

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Gearbox External Diameter:

120 mm

Shaft Moment Of Inertia:

2.84 kg.cm²

Rohs Exemption Information:

Yes

Housing Material:

black anodized aluminium

Product Or Component Type:

angular planetary gearbox

Net Weight:

14 kg

Efficiency:

0.92

Torsional Rigidity:

13 N.m/arcmin

Housing Colour:

black

Product Compatibility:

BMI 70 mm, 2 || BMH 70 mm, 2 || BSH 70 mm, 2 || BSH 100 mm, 1 || SH3 || MH3 || ILM

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Noise Level:

75 dB 1 m, no-load

Gear Box Type:

straight teeth

Continuous Output Torque:

230 N.m 100 rpm 30 °C

Internal Diameter:

24.0 mm

Pvc Free:

Yes

Additional Information:

lubricated for life

Mercury Free:

Yes

Catalog:

View

Datasheet:

View
