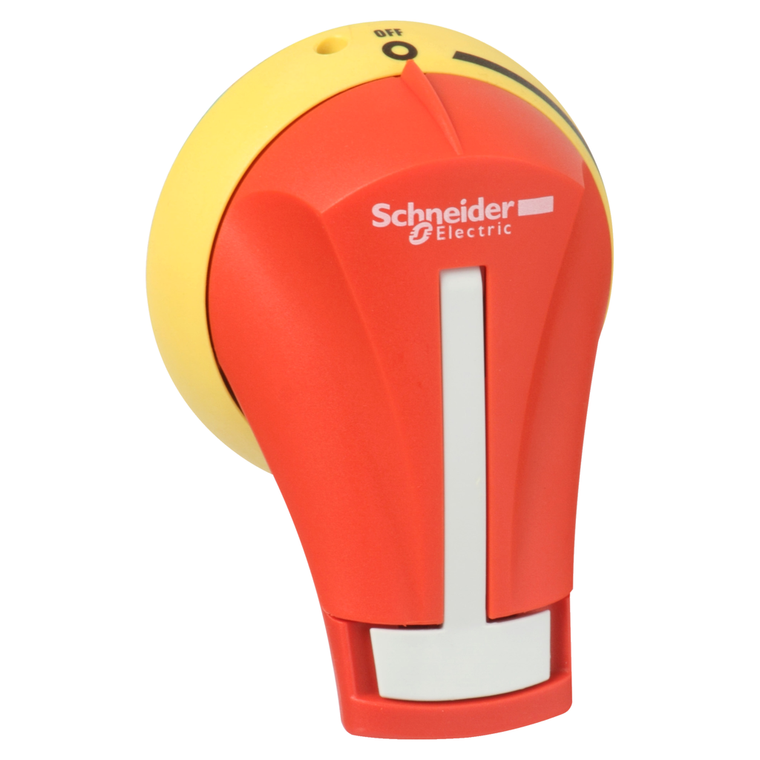

Schneider Electric GS2AH120 Ext Front Handle 30-60A 3R,12 Red

Schneider Electric GS2AH120 Ext Front Handle 30-60A 3R,12 Red

Schneider Electric
SKU:
GS2AH120
|
UPC:
3389119411820
Availability:
Contact us to confirm availability and lead times.
$62.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GS external operating handle for 3-pole 30A UL fuse switch-disconnectors GS1DDU, GS1DU. Red handle with yellow front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Additional Information
Rohs Exemption Information:
Yes
Range Compatibility:
TeSys TeSys GS GS1D
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Compliant
Mercury Free:
Yes
Device Short Name:
GS2AH
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP2003007EN
Type Of Operating Handle:
external frontal
Range Of Product:
TeSys
Rotary Handle Padlocking:
with
Toxic Heavy Metal Free:
Yes
Standards:
UL || CSA
Reach Regulation:
Free of Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
rotary handle
Circularity Profile:
ENVEOLI2003007EN
Range:
TeSys
Marking:
O-I
Handle Front Plate Colour:
yellow
Handle Colour:
red
Nema Degree Of Protection:
NEMA 3R/12
Net Weight:
0.2 kg
Line Rated Current:
30 A
China Rohs Regulation:
X
Catalog:
View
Datasheet:
View
