Schneider Electric GS2AH160 Ext Front Handle 600..1200A 4,4X Red

Schneider Electric GS2AH160 Ext Front Handle 600..1200A 4,4X Red

Schneider Electric
SKU:
GS2AH160
|
UPC:
3389119411905
Availability:
Contact us to confirm availability and lead times.
$263.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

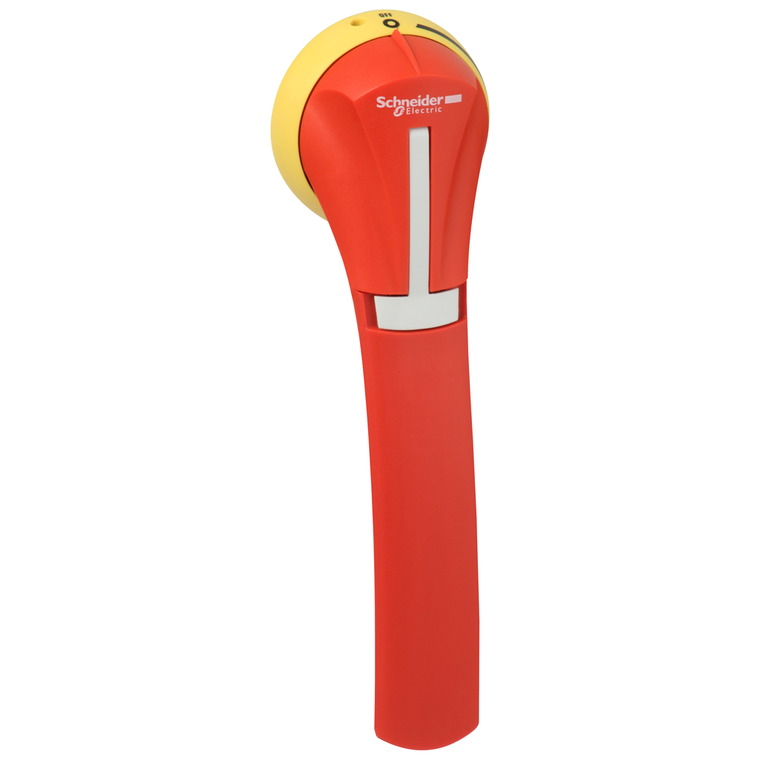

TeSys GS external operating handle for 3-pole 600-800A UL fuse switch-disconnectors GS2SU, GS2TU. Red handle with yellow front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Additional Information
Product Or Component Type:
rotary handle
Sustainable Offer Status:
Green Premium product
Reach Free Of Svhc:
Yes
Standards:
UL || CSA
China Rohs Regulation:
X
Mercury Free:
Yes
Rotary Handle Padlocking:
with
Warranty:
18 months
Line Rated Current:
600 A || 800 A
Handle Colour:
red
Marking:
O-I
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Type Of Operating Handle:
external frontal
Range:
TeSys
Range Of Product:
TeSys
Circularity Profile:
ENVEOLI2003007EN
Eu Rohs Directive:
Compliant
Toxic Heavy Metal Free:
Yes
Device Short Name:
GS2AH
Environmental Disclosure:
ENVPEP2003007EN
Handle Front Plate Colour:
yellow
Net Weight:
0.28 kg
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Nema Degree Of Protection:
NEMA 4/4X
Range Compatibility:
TeSys TeSys GS GS2S || TeSys TeSys GS GS2T
