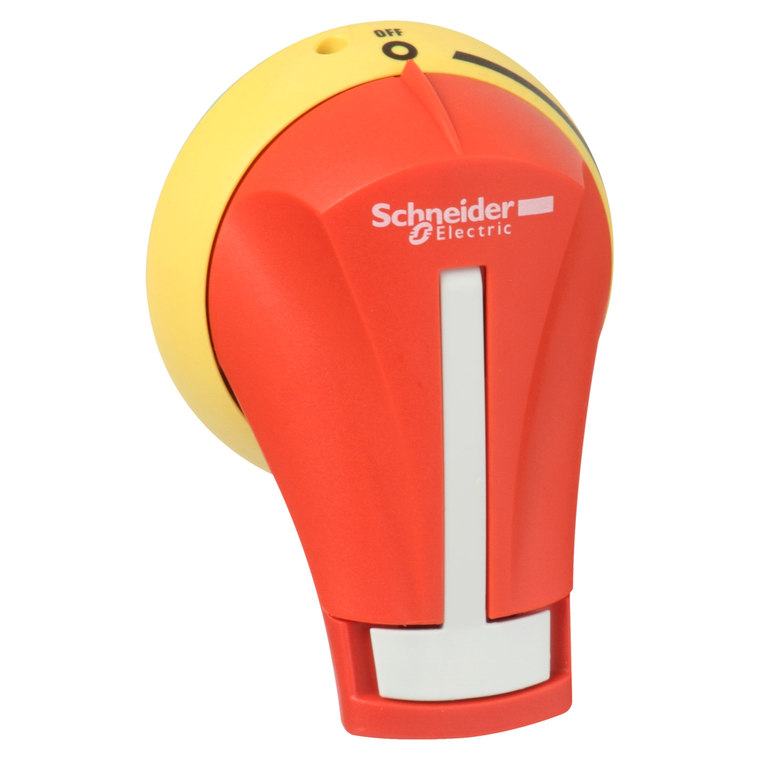

Schneider Electric GS2AH420 Ext Front Handle 30-60A 4,4X Red
Schneider Electric
$70.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric GS2AH420 Ext Front Handle 30-60A 4,4X Red

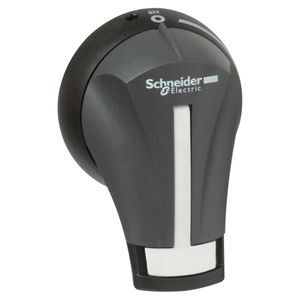

TeSys GS external operating handle for 3-pole 30A UL fuse switch-disconnectors GS1DDU, GS1DU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
- Rotary Handle Padlocking:
- with
- Device Short Name:
- GS2AH
- Product Or Component Type:
- rotary handle
- Handle Front Plate Colour:
- yellow
- Toxic Heavy Metal Free:
- Yes
- Type Of Operating Handle:
- external frontal
- Mercury Free:
- Yes
- Standards:
- CSA || UL
- Marking:
- O-I
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant
- Net Weight:
- 0.2 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Line Rated Current:
- 30 A
- Handle Colour:
- red
- Nema Degree Of Protection:
- NEMA 4/4X
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Range Of Product:
- TeSys
- Range:
- TeSys
- Range Compatibility:
- TeSys TeSys GS GS1D fuse-switch disconnector
- Catalog:
- View
- Datasheet:
- View
