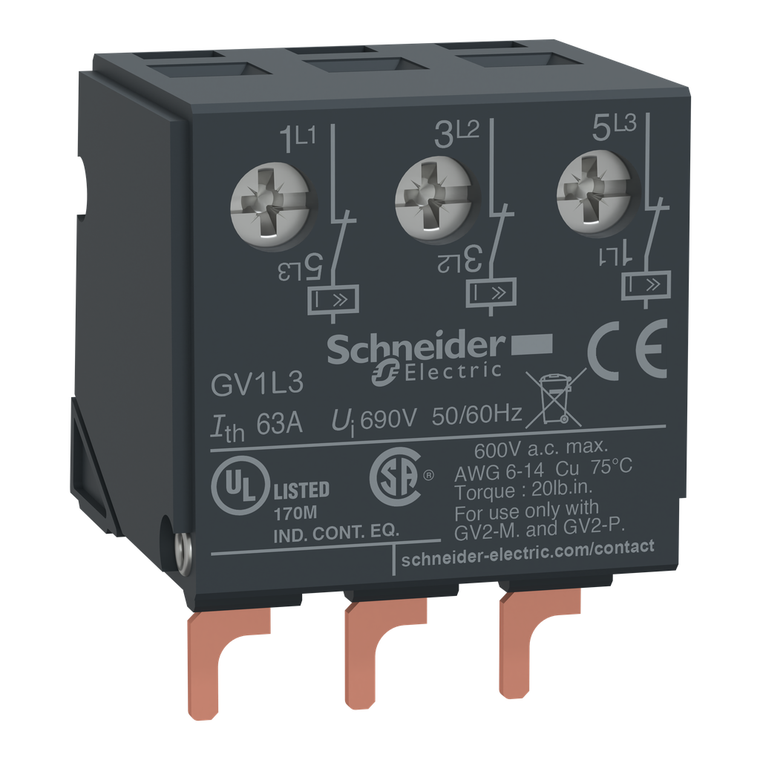

Schneider Electric GV1L3 Gv2Me-Gv2P Current Limiting
TeSys GV short circuit current limiter block for motor circuit breakers GV2L/LE/P/ME/RT. It increases the ability of the circuit breaker to withstand a short circuit current from 50 kA to 100/130kA@400 V. To be mounted on top of a GV2 motor circuit breaker. It conforms to RoHS/REACh regulation.
- [Ui] Rated Insulation Voltage:
- 690 V AC 50/60 Hz IEC 60947-1
- Function Of Module:
- increasing the breaking capacity of a circuit breaker
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Warranty:
- 18 months
- [Ith] Conventional Free Air Thermal Current:
- 63 A IEC 60947-1
- Range Compatibility:
- TeSys GV2 || TeSys Deca
- Accessory / Separate Part Category:
- protection accessory
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP121004
- Range Of Product:
- TeSys GV2 || TeSys Deca
- Mounting Location:
- on top of the circuit breaker
- Breaking Capacity:
- <= 100 kA depending on protective device
- Activation Threshold:
- 1500 A
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Net Weight:
- 0.13 kg
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- ENVEOLI121004
- Range:
- TeSys
- Tightening Torque:
- 2.2 N.m
- Eu Rohs Directive:
- Compliant
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- current limiting module
- [Ie] Rated Operational Current:
- 32 A
- Rohs Exemption Information:
- Yes
- Connections - Terminals:
- screw clamp terminals 1 x 1.5-25 mm² rigid || screw clamp terminals 2 x 1.5-10 mm² rigid || screw clamp terminals 1 x 1.5-25 mm² flexible without cable end || screw clamp terminals 2 x 1.5-10 mm² flexible without cable end || screw clamp terminal
- Product Compatibility:
- GV2RT || GV2ME || GV2P || GV2L
