Schneider Electric

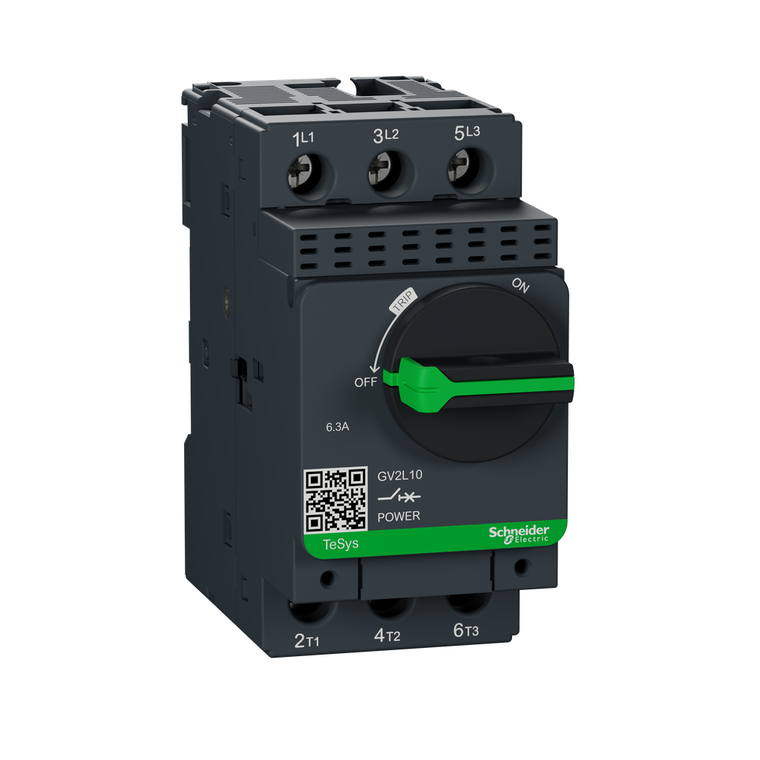

Schneider Electric GV2L10 Tesys Magnetic Circuit Breaker

(No reviews yet) Write a Review
SKU:
GV2L10
UPC:
3389110213263
Condition:
New
Line Rated Current:
6.3 A
[Ics] Rated Service Short-Circuit Breaking Capacity:
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2
Operating Altitude:
6561.68 ft (2000 m)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA || IECEE CB Scheme
Device Short Name:
GV2L
Mechanical Robustness:
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Rohs Exemption Information:
Yes
Network Frequency:
50/60 Hz IEC 60947-2
Ambient Air Temperature For Storage:
-40-80 °C
Poles Description:
3P
Utilisation Category:
category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1
Range:
TeSys Deca
Circularity Profile:
ENVEOLI2211002
Environmental Disclosure:
ENVPEP2211002
Mercury Free:
Yes
Warranty:
18 months
Standards:
EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
Fire Resistance:
960 °C IEC 60695-2-11
Suitability For Isolation:
yes IEC 60947-1 § 7-1-6
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height:
89 mm
[Ui] Rated Insulation Voltage:
690 V AC 50/60 Hz IEC 60947-2
Motor Power Kw:
2.2-2.2 kW 400/415 V AC 50/60 Hz || 3-3 kW 500 V AC 50/60 Hz || 4-4 kW 690 V AC 50/60 Hz
Magnetic Tripping Current:
78-78 A
[Ith] Conventional Free Air Thermal Current:
6.3 A IEC 60947-4-1
Ambient Air Temperature For Operation:
-20-60 °C
Depth:
97 mm
Network Type:
AC
Electrical Durability:
100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In
Breaking Capacity:
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 4 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Climatic Withstand:
IACS E10
Net Weight:
0.33 kg
Mechanical Durability:
100000 cycles
Eu Rohs Directive:
Compliant with Exemptions
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-2
Device Application:
motor protection
Color:
dark grey
Power Dissipation Per Pole:
1.8 W
Width:
45 mm
Rated Duty:
continuous IEC 60947-4-1
Control Type:
rotary handle
Trip Unit Technology:
magnetic
Fixing Mode:
35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)
Ip Degree Of Protection:
IP20 IEC 60529
Product Or Component Type:
motor circuit breaker
Sustainable Offer Status:
Green Premium product
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-2
Tightening Torque:
1.7 N.m screw clamp terminal
Ik Degree Of Protection:
IK04
Product Name:
TeSys GV2 || TeSys Deca
Datasheet:
View
$207.00

Description

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD010 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
