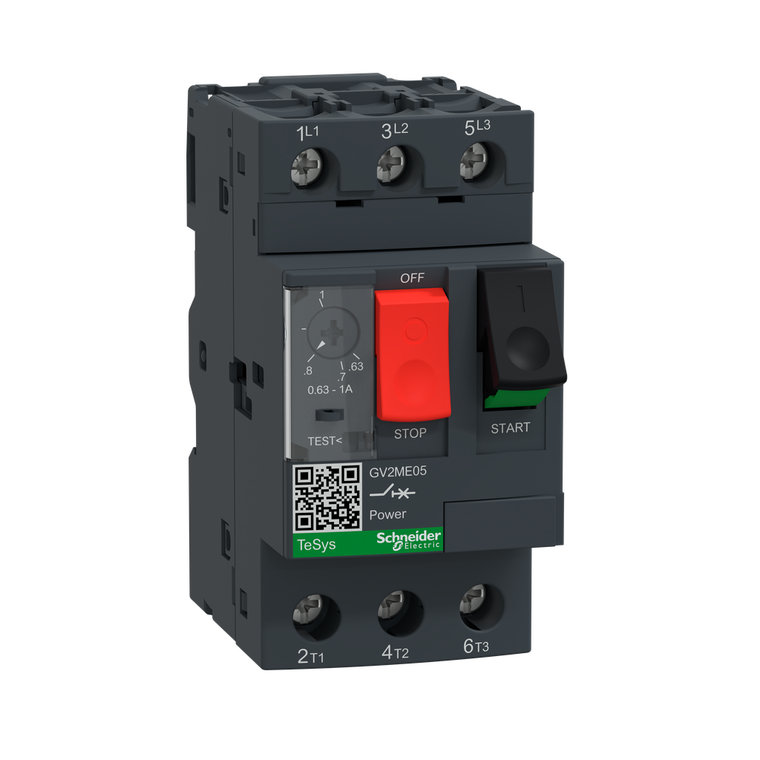

Schneider Electric GV2ME05 Tesys M-Cb Tho/Mag 0.63-1A Rocker

Schneider Electric GV2ME05 Tesys M-Cb Tho/Mag 0.63-1A Rocker

Schneider Electric
SKU:
GV2ME05
|
UPC:
3389110343038
$180.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 0.63 ampere to 1 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Additional Information
Motor Power Kw:
0.25-0.25 kW 400/415 V AC 50/60 Hz || 0.55-0.55 kW 690 V AC 50/60 Hz
Standards:
EN/IEC 60947-2 || EN/IEC 60947-4-1
Poles Description:
3P
[Ith] Conventional Free Air Thermal Current:
1 A IEC 60947-4-1
[Ui] Rated Insulation Voltage:
690 V AC 50/60 Hz IEC 60947-2
Net Weight:
0.28 kg
Phase Failure Sensitivity:
yes IEC 60947-4-1
Thermal Protection Adjustment Range:
0.63-1 A IEC 60947-4-1
Fixing Mode:
35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Circularity Profile:
ENVEOLI121004
Line Rated Current:
0.0416666666666667
Fire Resistance:
960 °C IEC 60695-2-11
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-2
Height:
89 mm
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Rated Duty:
continuous IEC 60947-4-1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP121004
Depth:
78.5 mm
Control Type:
push-button
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-2
Mechanical Robustness:
shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP20 IEC 60529
Range:
TeSys Deca
Network Frequency:
50/60 Hz IEC 60947-4-1
Tightening Torque:
1.7 N.m screw clamp terminal
Magnetic Tripping Current:
13-13 A
Mechanical Durability:
100000 cycles
[Ics] Rated Service Short-Circuit Breaking Capacity:
100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2
Product Name:
TeSys GV2 || TeSys Deca
Product Certifications:
CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA
Operating Altitude:
6561.68 ft (2000 m)
Ambient Air Temperature For Operation:
-20-60 °C
Utilisation Category:
category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1
Ik Degree Of Protection:
IK04
Power Dissipation Per Pole:
2.5 W
Color:
dark grey
Trip Unit Technology:
thermal-magnetic
Device Application:
motor protection
Ambient Air Temperature For Storage:
-40-80 °C
Electrical Durability:
100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In
Climatic Withstand:
IACS E10
Breaking Capacity:
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Network Type:
AC
Device Short Name:
GV2ME
Warranty:
18 months
Width:
45 mm
Suitability For Isolation:
yes IEC 60947-1 § 7-1-6
Product Or Component Type:
motor circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Datasheet:
View
