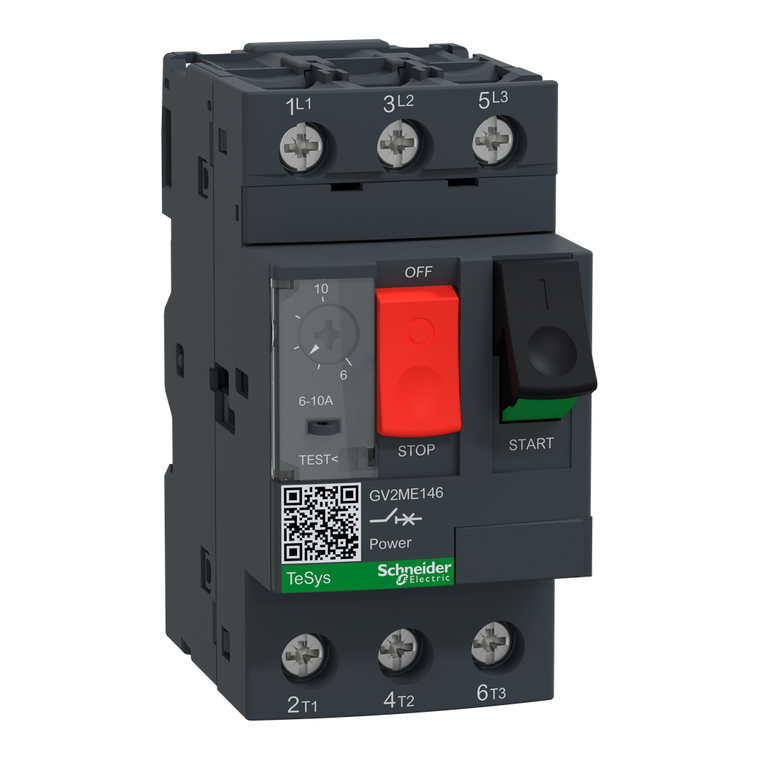

Schneider Electric GV2ME146 Tesys Motor Cb Mgth 6 10 Lug Ter Pack of 24

(No reviews yet) Write a Review

Write a Review

Schneider Electric GV2ME146 Tesys Motor Cb Mgth 6 10 Lug Ter Pack of 24

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GV2ME146

UPC:

3.38911E+12

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Magnetic Tripping Current:

138-138 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Thermal Protection Adjustment Range:

6-10 A IEC 60947-4-1

Power Dissipation Per Pole:

2.5 W

Ambient Air Temperature For Operation:

-20-60 °C

Device Application:

motor protection

Fixing Mode:

35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

Suitability For Isolation:

yes IEC 60947-1 § 7-1-6

Device Short Name:

GV2ME

Breaking Capacity:

100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 10 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Control Type:

push-button

Motor Power Kw:

3-3 kW 400/415 V AC 50/60 Hz || 4-4 kW 400/415 V AC 50/60 Hz || 4-4 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 690 V AC 50/60 Hz || 7.5-7.5 kW 690 V AC 50/60 Hz

[Ics] Rated Service Short-Circuit Breaking Capacity:

100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Utilisation Category:

category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1

Network Frequency:

50/60 Hz IEC 60947-4-1

Poles Description:

3P

Network Type:

AC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Climatic Withstand:

IACS E10

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Compliant with Exemptions

Color:

dark grey

Environmental Disclosure:

ENVPEP121004

Width:

45 mm

Depth:

78.5 mm

Operating Altitude:

6561.68 ft (2000 m)

Electrical Durability:

100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In

Rated Duty:

continuous IEC 60947-4-1

Phase Failure Sensitivity:

yes IEC 60947-4-1

Line Rated Current:

0.416666666666667

Fire Resistance:

960 °C IEC 60695-2-11

Ip Degree Of Protection:

IP20 IEC 60529

Trip Unit Technology:

thermal-magnetic

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-2

Mechanical Durability:

100000 cycles

Height:

89 mm

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-4-1

Rohs Exemption Information:

Yes

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Net Weight:

0.26 kg

Warranty:

18 months

Ambient Air Temperature For Storage:

-40-80 °C

Connection Pitch:

13.5 mm without spreader

Product Name:

TeSys GV2 || TeSys Deca

Range:

TeSys Deca

Product Certifications:

CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA

Product Or Component Type:

motor circuit breaker

Standards:

EN/IEC 60947-2 || EN/IEC 60947-4-1

[Ui] Rated Insulation Voltage:

690 V AC 50/60 Hz IEC 60947-2

Mercury Free:

Yes

Circularity Profile:

ENVEOLI121004

Ik Degree Of Protection:

IK04

Mechanical Robustness:

shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
