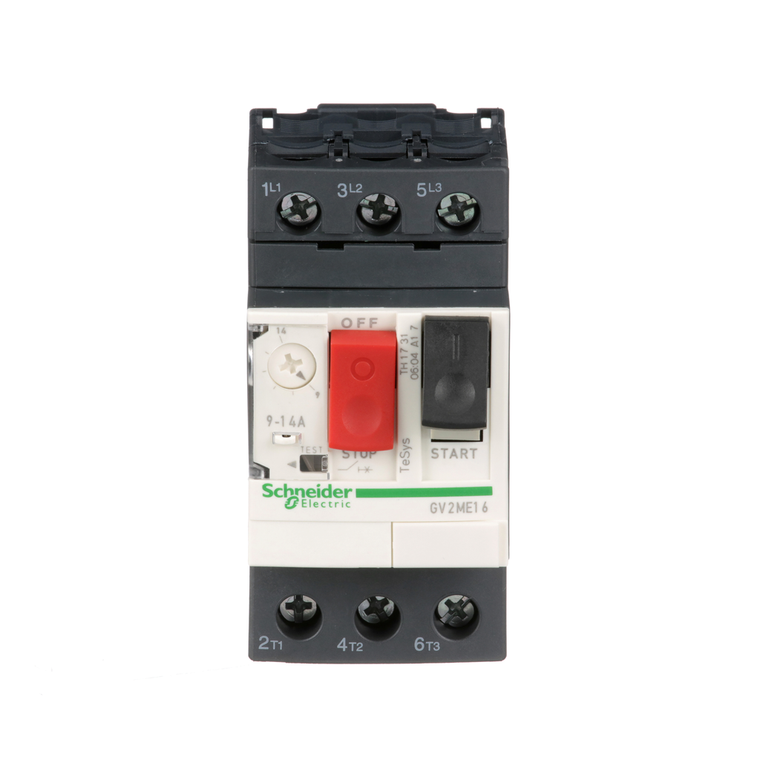

Schneider Electric GV2ME16 Tesys Motor Cb Tho/Mag 9-14A Rocker

(No reviews yet) Write a Review

Write a Review

Schneider Electric GV2ME16 Tesys Motor Cb Tho/Mag 9-14A Rocker

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GV2ME16

UPC:

3389110343175

MPN:

Condition:

New

Range:

TeSys Deca

Electrical Durability:

100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In

Ip Degree Of Protection:

IP20 IEC 60529

[Ui] Rated Insulation Voltage:

690 V AC 50/60 Hz IEC 60947-2

Line Rated Current:

14 A

Poles Description:

3P

Mechanical Durability:

100000 cycles

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Tightening Torque:

1.7 N.m screw clamp terminal

Network Frequency:

50/60 Hz IEC 60947-4-1

Device Application:

motor protection

Product Certifications:

CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA

[Ith] Conventional Free Air Thermal Current:

14 A IEC 60947-4-1

Control Type:

push-button

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-2

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ics] Rated Service Short-Circuit Breaking Capacity:

100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

Thermal Protection Adjustment Range:

9-14 A IEC 60947-4-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circularity Profile:

ENVEOLI121004

Environmental Disclosure:

ENVPEP121004

Fixing Mode:

35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

Color:

dark grey

Mercury Free:

Yes

Ik Degree Of Protection:

IK04

Trip Unit Technology:

thermal-magnetic

Phase Failure Sensitivity:

yes IEC 60947-4-1

Eu Rohs Directive:

Compliant with Exemptions

Sustainable Offer Status:

Green Premium product

Operating Altitude:

6561.68 ft (2000 m)

Width:

45 mm

Ambient Air Temperature For Storage:

-40-80 °C

Net Weight:

0.26 kg

Product Name:

TeSys GV2 || TeSys Deca

Motor Power Kw:

5.5-5.5 kW 400/415 V AC 50/60 Hz || 7.5-7.5 kW 500 V AC 50/60 Hz || 9-9 kW 690 V AC 50/60 Hz || 11-11 kW 690 V AC 50/60 Hz

Depth:

78.5 mm

Mechanical Robustness:

shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-2

Product Or Component Type:

motor circuit breaker

Height:

89 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Fire Resistance:

960 °C IEC 60695-2-11

Rated Duty:

continuous IEC 60947-4-1

Magnetic Tripping Current:

170-170 A

Ambient Air Temperature For Operation:

-20-60 °C

Power Dissipation Per Pole:

2.5 W

Suitability For Isolation:

yes IEC 60947-1 § 7-1-6

Breaking Capacity:

100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Standards:

EN/IEC 60947-2 || EN/IEC 60947-4-1

Climatic Withstand:

IACS E10

Device Short Name:

GV2ME

Utilisation Category:

category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1

Network Type:

AC

Warranty:

18 months
