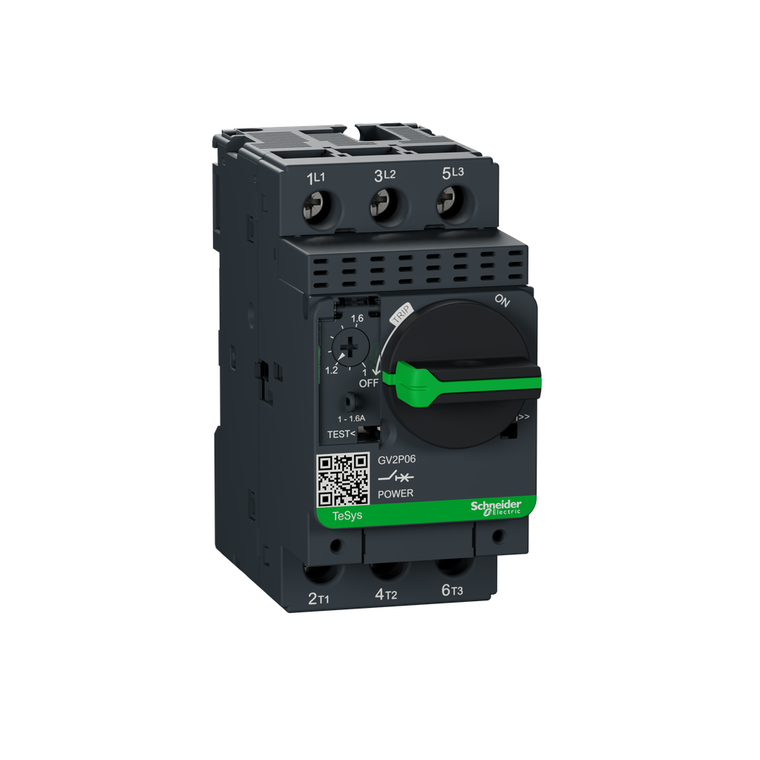

Schneider Electric GV2P06 Tesys Motor Circuit Breaker
Schneider Electric
$230.68
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2P controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 1 ampere to 1.6 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
- Phase Failure Sensitivity:
- yes IEC 60947-4-1
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Certifications:
- CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA
- Thermal Protection Adjustment Range:
- 1-1.6 A IEC 60947-4-1
- Height:
- 89 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ik Degree Of Protection:
- IK04
- Color:
- dark grey
- Fire Resistance:
- 960 °C IEC 60695-2-11
- Environmental Disclosure:
- ENVPEP2211002
- Ambient Air Temperature For Storage:
- -40-80 °C
- Trip Unit Technology:
- thermal-magnetic
- Utilisation Category:
- category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1
- Circularity Profile:
- ENVEOLI2211002
- Network Type:
- AC
- Device Short Name:
- GV2P
- Warranty:
- 18 months
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Line Rated Current:
- 1.6 A
- Suitability For Isolation:
- yes IEC 60947-1 § 7-1-6
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-2
- Rated Duty:
- continuous IEC 60947-4-1
- [Ics] Rated Service Short-Circuit Breaking Capacity:
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Fixing Mode:
- 35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)
- Motor Power Kw:
- 0.37-0.37 kW 400/415 V AC 50/60 Hz || 0.55-0.55 kW 400/415 V AC 50/60 Hz || 0.37-0.37 kW 500 V AC 50/60 Hz || 0.55-0.55 kW 500 V AC 50/60 Hz || 0.75-0.75 kW 690 V AC 50/60 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Device Application:
- motor protection
- Climatic Withstand:
- IACS E10
- Product Or Component Type:
- motor circuit breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Altitude:
- 6561.68 ft (2000 m)
- Mechanical Robustness:
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Breaking Capacity:
- 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Magnetic Tripping Current:
- 22.5-22.5 A
- Power Dissipation Per Pole:
- 2.5 W
- Network Frequency:
- 50/60 Hz IEC 60947-4-1
- [Ui] Rated Insulation Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Mechanical Durability:
- 100000 cycles
- Ip Degree Of Protection:
- IP20 IEC 60529
- Width:
- 45 mm
- Depth:
- 97 mm
- Ambient Air Temperature For Operation:
- -20-60 °C
- Range:
- TeSys Deca
- Poles Description:
- 3P
- Product Name:
- TeSys GV2 || TeSys Deca
- Tightening Torque:
- 1.7 N.m screw clamp terminal
- Standards:
- EN/IEC 60947-2 || EN/IEC 60947-4-1
- Control Type:
- rotary handle
- [Ith] Conventional Free Air Thermal Current:
- 1.6 A IEC 60947-4-1
- Electrical Durability:
- 100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In
