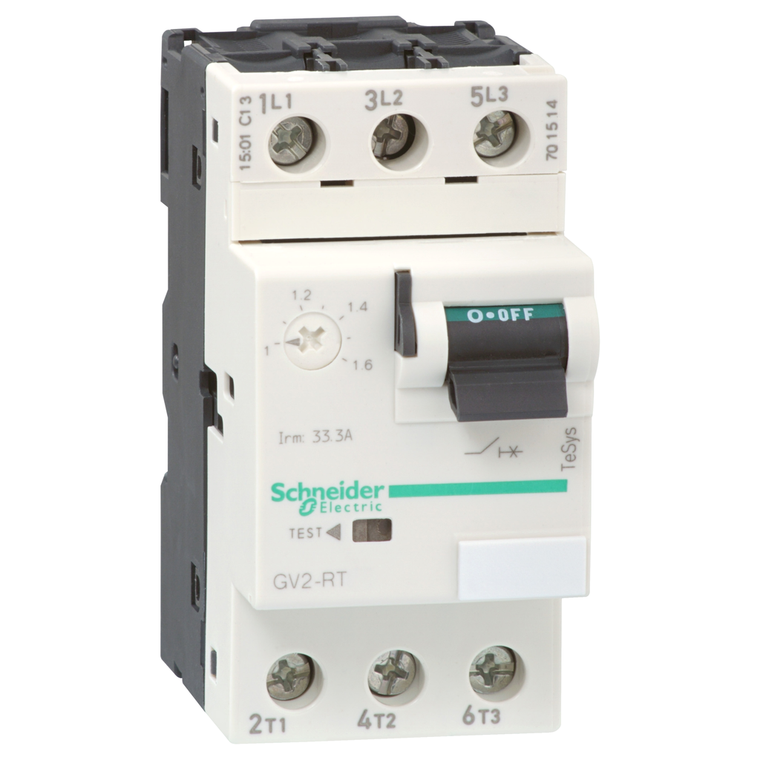

Schneider Electric GV2RT21 Gv2 Motor Cb High Inrush 17-23A Toggle
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for high starting current peak motor applications 9-11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, a magnetic tripping level at 17xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- Utilisation Category:
- category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1
- [Ith] Conventional Free Air Thermal Current:
- 23 A IEC 60947-4-1
- Ambient Air Temperature For Operation:
- -20-60 °C
- Device Application:
- motor protection
- Ip Degree Of Protection:
- IP20 IEC 60529
- Thermal Protection Adjustment Range:
- 17-23 A IEC 60947-4-1
- Product Certifications:
- CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || UKCA
- Width:
- 45 mm
- Rohs Exemption Information:
- Yes
- Ik Degree Of Protection:
- IK04
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-80 °C
- Magnetic Tripping Current:
- 400-400 A
- Fire Resistance:
- 960 °C IEC 60695-2-11
- Environmental Disclosure:
- ENVPEP121004
- Line Rated Current:
- 23 A
- Suitability For Isolation:
- yes IEC 60947-1 § 7-1-6
- Range:
- TeSys Deca
- Electrical Durability:
- 100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In
- Operating Altitude:
- 6561.68 ft (2000 m)
- Height:
- 89 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Control Type:
- toggle
- Fixing Mode:
- 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
- Breaking Capacity:
- 50 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Depth:
- 78.5 mm
- Sustainable Offer Status:
- Green Premium product
- Poles Description:
- 3P
- Power Dissipation Per Pole:
- 2.5 W
- Network Frequency:
- 50/60 Hz IEC 60947-4-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Product Or Component Type:
- motor circuit breaker
- Circularity Profile:
- ENVEOLI121004
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Short Name:
- GV2RT
- Product Name:
- TeSys GV2 || TeSys Deca
- Mechanical Robustness:
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-2
- Standards:
- EN/IEC 60947-2 || EN/IEC 60947-4-1
- Motor Power Kw:
- 5.5-5.5 kW 220/230 V AC 50/60 Hz motor protection high peak current || 9-9 kW 400/415 V AC 50/60 Hz motor protection high peak current || 11-11 kW 400/415 V AC 50/60 Hz motor protection high peak current || 11-11 kW 440 V AC 50/60 Hz motor protection
- Climatic Withstand:
- IACS E10
- Rated Duty:
- continuous IEC 60947-4-1
- Tightening Torque:
- 1.7 N.m screw clamp terminal
- Trip Unit Technology:
- thermal-magnetic
- Mechanical Durability:
- 100000 cycles
- [Ui] Rated Insulation Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Network Type:
- AC
