Schneider Electric GV3APN03 Gv3Apn03 Black Handle Front Plate Ip65 W

Schneider Electric GV3APN03 Gv3Apn03 Black Handle Front Plate Ip65 W

Schneider Electric
SKU:
GV3APN03
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$149.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

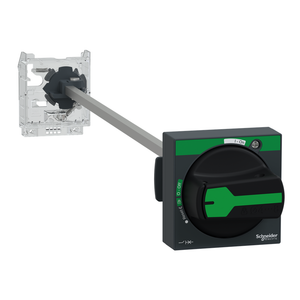

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).
Additional Information
Product Or Component Type:
rotary handle kit
Device Short Name:
GV3AP
Rotary Handle Padlocking:
padlock in OFF position || padlock in ON position
Handle Colour:
black
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Warranty:
18 months
Back/Door Distance:
189-300 mm
Rotary Handle Mounting Style:
extended
Handle Front Plate Colour:
grey
Range:
TeSys
California Proposition 65:
WARNING: Cancer - www.P65Warnings.ca.gov
Product Compatibility:
GV3P || GV3L
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Accessory / Separate Part Category:
control accessory
Locking Options Description:
1 to 3 padlocks
Rohs Exemption Information:
Yes
Net Weight:
0.3 kg
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ip Degree Of Protection:
IP65
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
